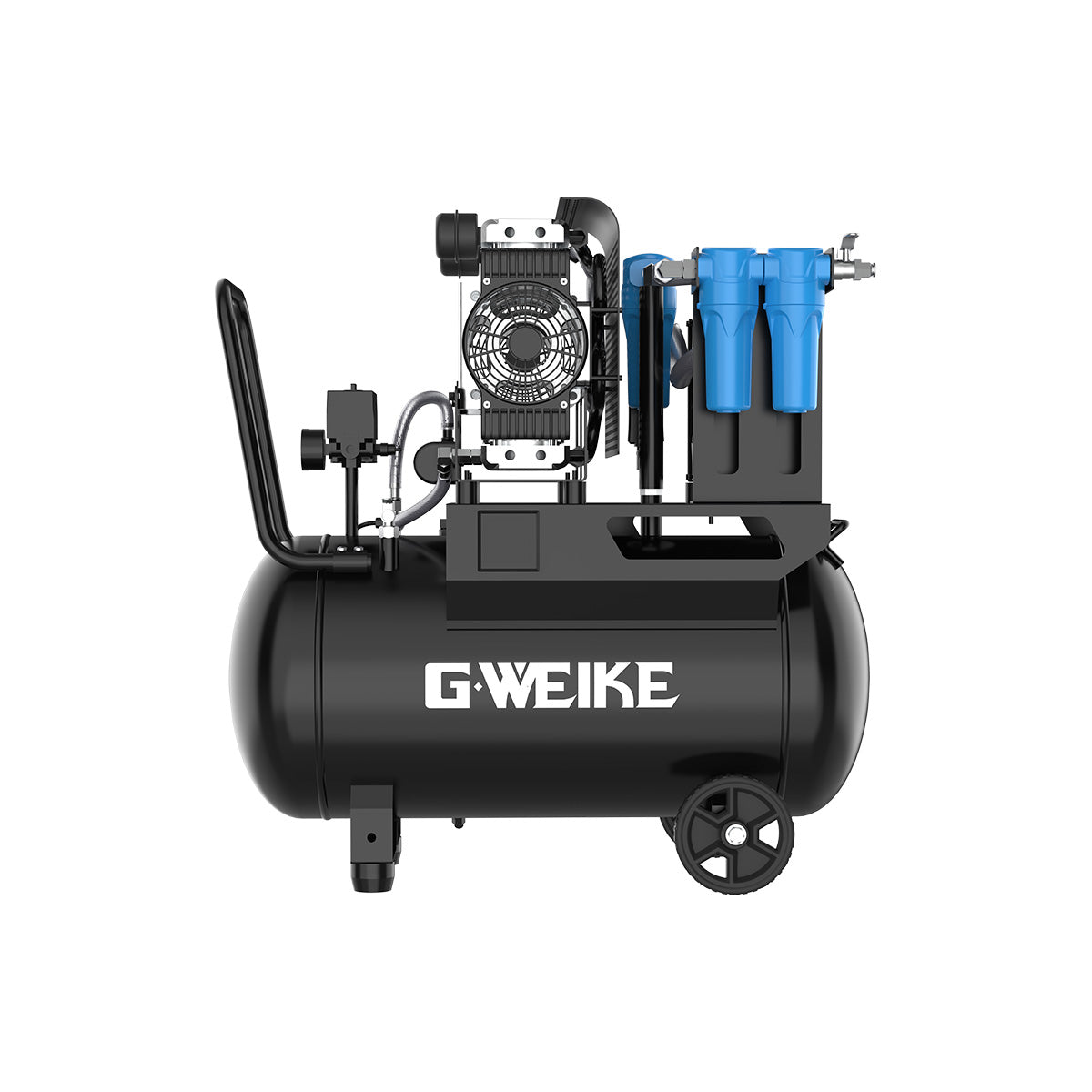

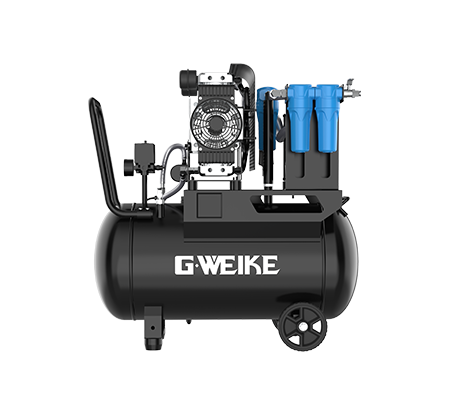

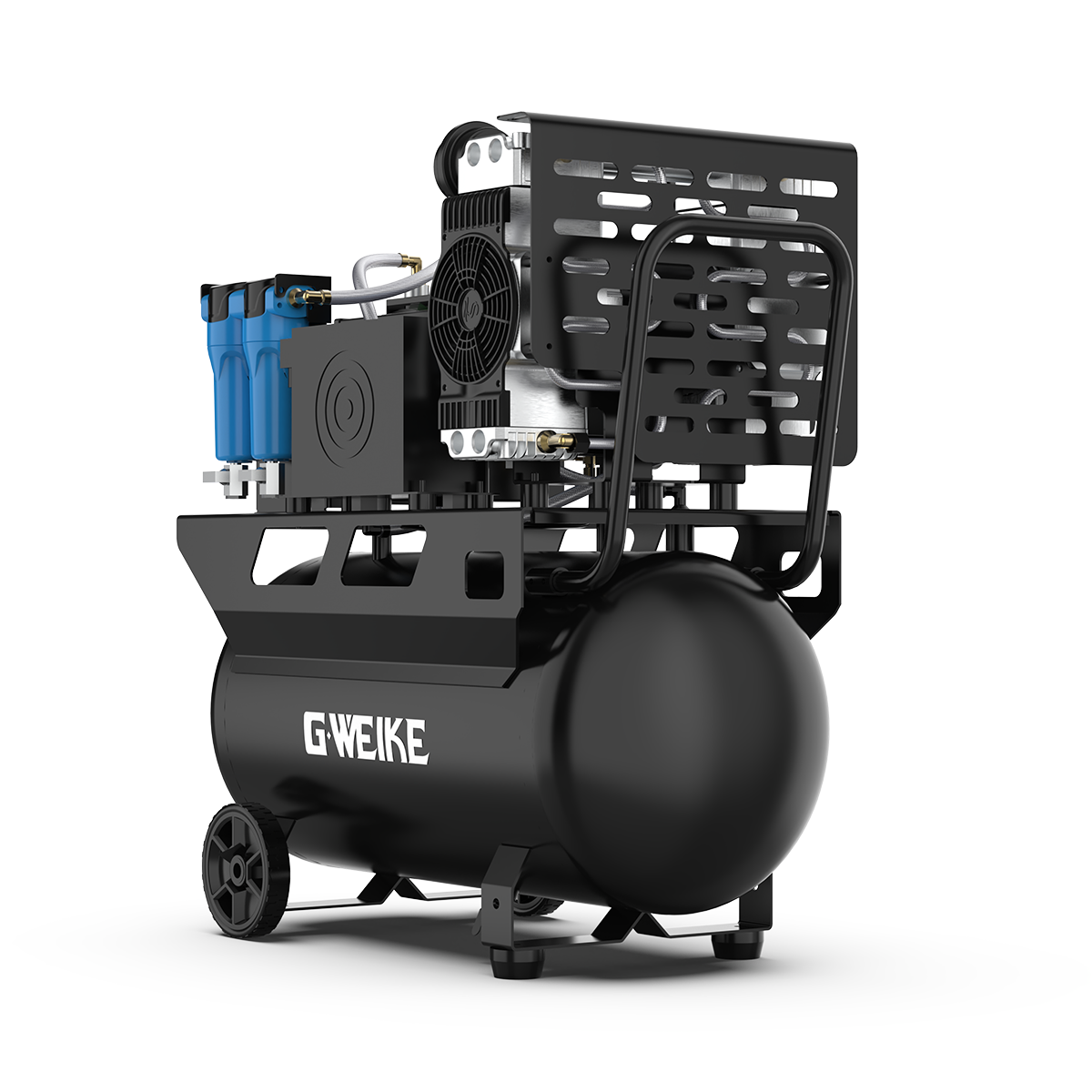

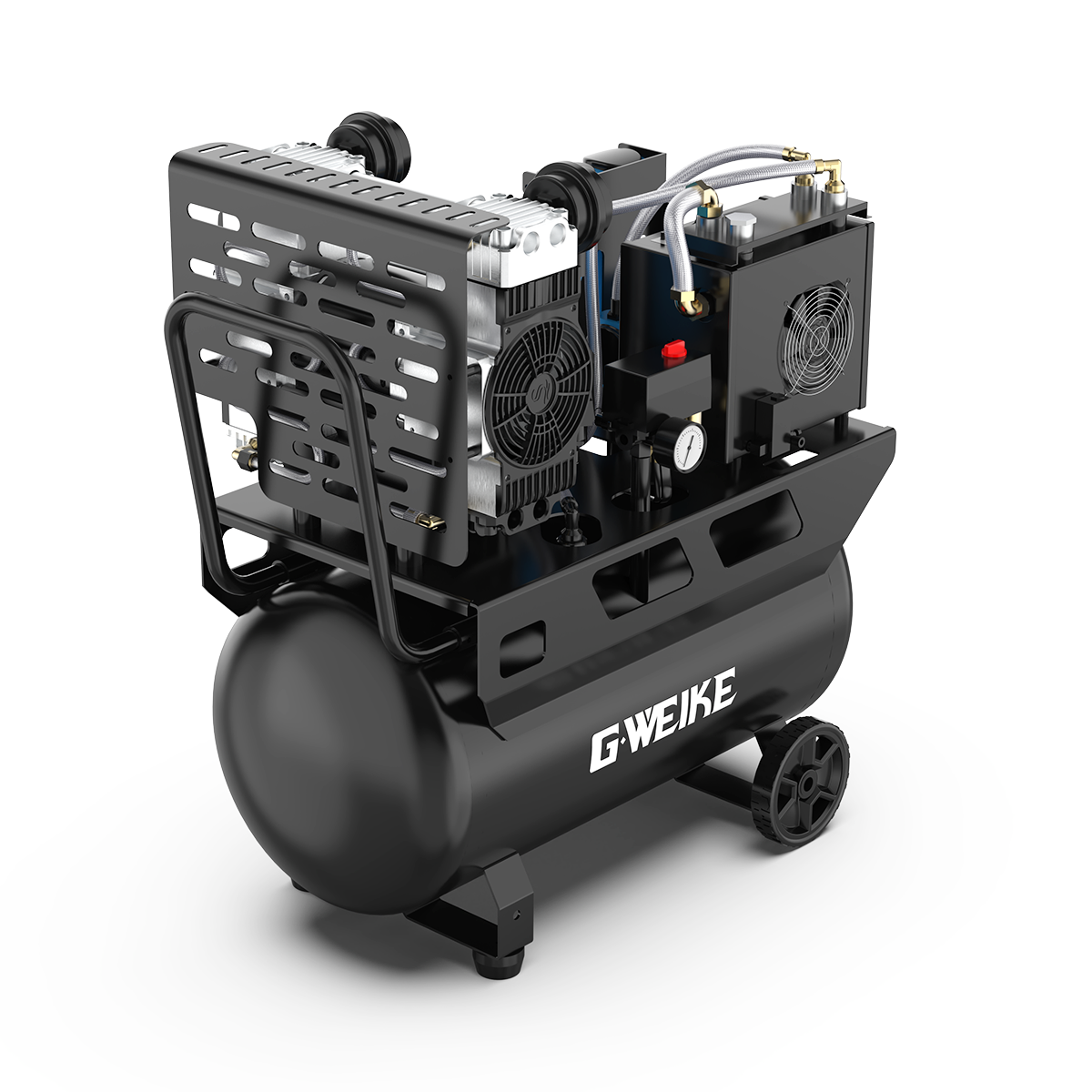

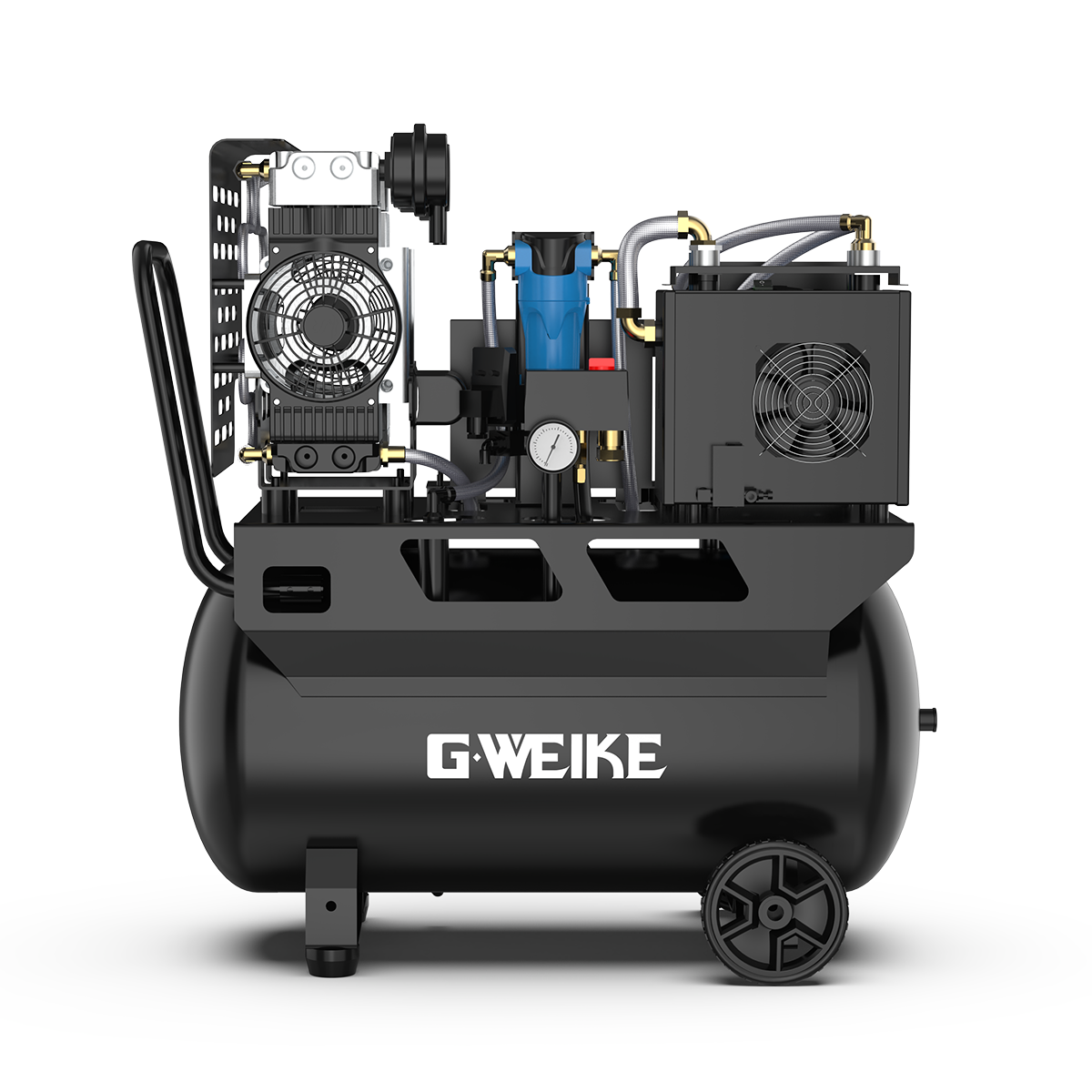

2.2KW 1.2MPa Air Compressor for MCore
2.2KW 1.2MPa Air Compressor for MCore
2.2KW 1.2MPa Air Compressor for MCore
Features Videos

gweike cloud

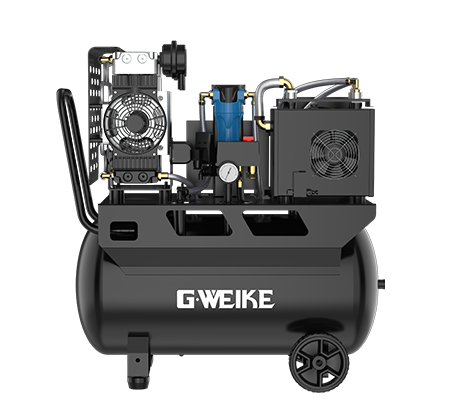

2.2KW 1.2MPa Air Compressor for MCore

2.2KW 1.2MPa Air Compressor for MCore

$1,699.00
$1,699.00 $1,999.00
セール 売り切れ
Payments:
PayPal Visa Mastercard American Express Discover JCB Klarna Affirm Google Pay Apple Pay
詳細を表示する

Protect Your Laser with the
HyperPure Clean Air System

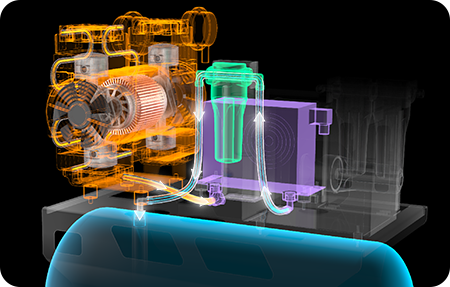

The integrated oil-free compressor, refrigerated dryer, and multi-stage filtration system delivers clean, dry air at up to 1.2 MPa (174 PSI). It removes moisture, dust, and oil mist, helping maintain a stable ow-dew-point air supply and reducing the risk of lens contamination, nozzle blockage, oxidation, and dross.

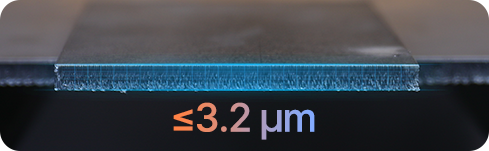

Clean, dry air helps produce smooth cutting edges with surface roughness of ≤ 3.2 μm.Results vary by material, process and machine settings

It drastically cuts your annual consumable cost by reducing frequent lens and nozzle replacements.

Designed for the GWEIKE MCORE Desktop 400W Fiber & 80W CO₂ Dual Laser Cutter, it is suitable for jewelry, medical titanium components, precision crafts and other high-accuracy applications.

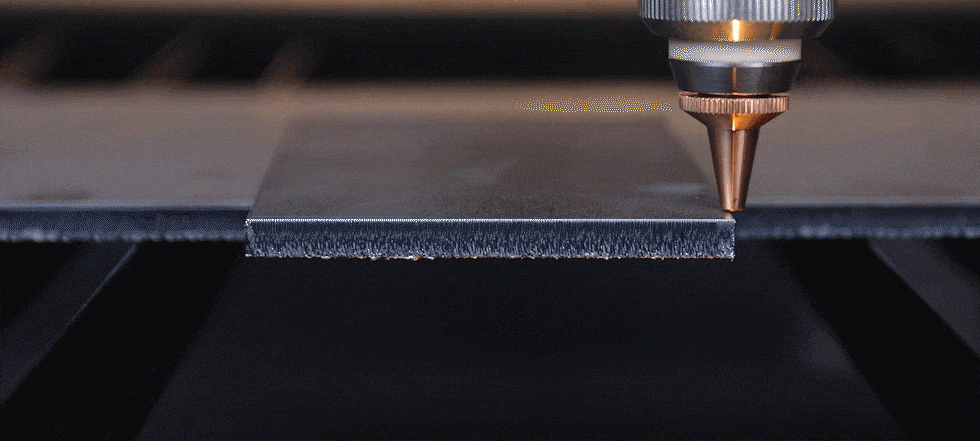

Stable 174 PSI Air Pressure | Clean Cuts up to 5 mm

Powered by a 2.3 kW motor and equipped with a 70 L buffer tank, the system delivers stable air pressure up to 174 PSI with minimal fluctuation. High-speed airflow helps remove molten metal, shorten piercing and preheating time, and maintain consistent cutting performance. With suitable laser power, material, and process settings, it can support carbon steel cutting up to 5 mm thick.

  • 2.3kW
    Power
  • 70L
    Large
    Capacity
  • 174PSI
    Constant
    High Pressure
  • 5mm
    Carbon
    Steel

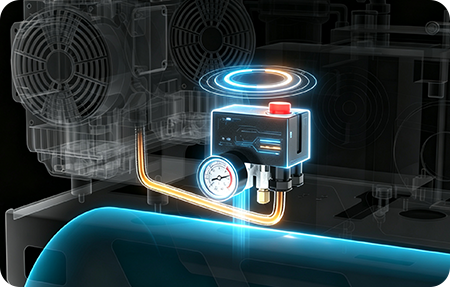

The intelligent pressure-controlled start-stop system pauses the compressor during idle periods to reduce unnecessary energy use.

A maximum airflow of 7.4 SCFM (210 L/min) provides capacity for stable operation and future workflow expansion.

All-in-One
Design | Compact, Mobile,
and Easy to Install

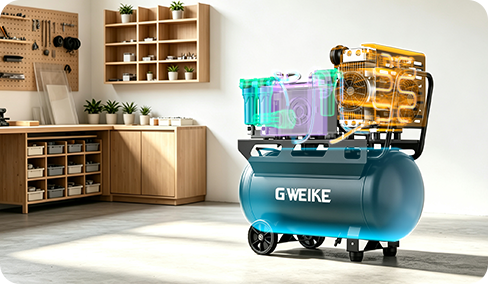

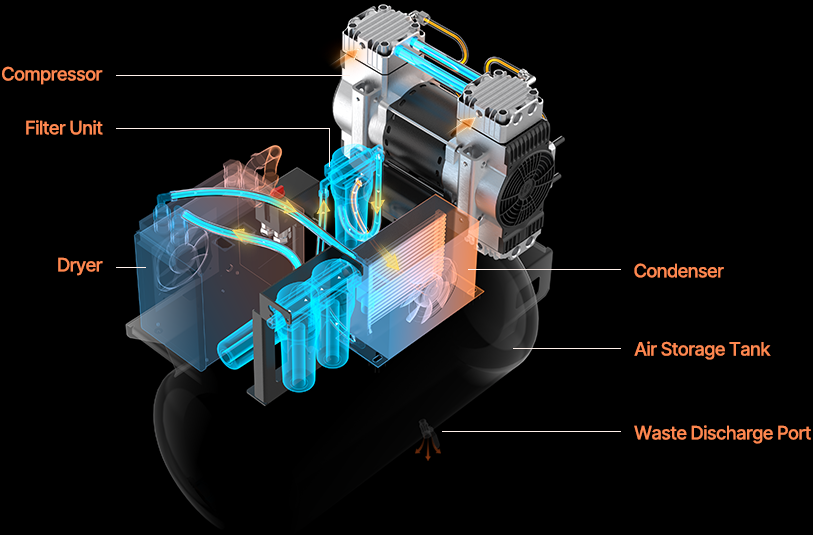

The factory-integrated system combines an oil-free compressor, refrigerated dryer, 70 L air tank, and multi-stage filtration in one unit. The main air circuit is preconfigured, eliminating the need to purchase and connect multiple standalone components. After power and air-line connections are completed, it can be used with compatible GWEIKE laser equipment. Universal casters make the compact unit easy to move and position.

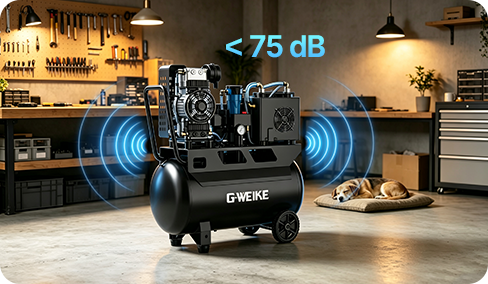

Noise- and vibration-reduction design keeps the rated operating noise below 75 dB, making the system suitable for garages, home workshops, and small studios. Actual noise may vary depending on the installation environment, load, and maintenance condition.

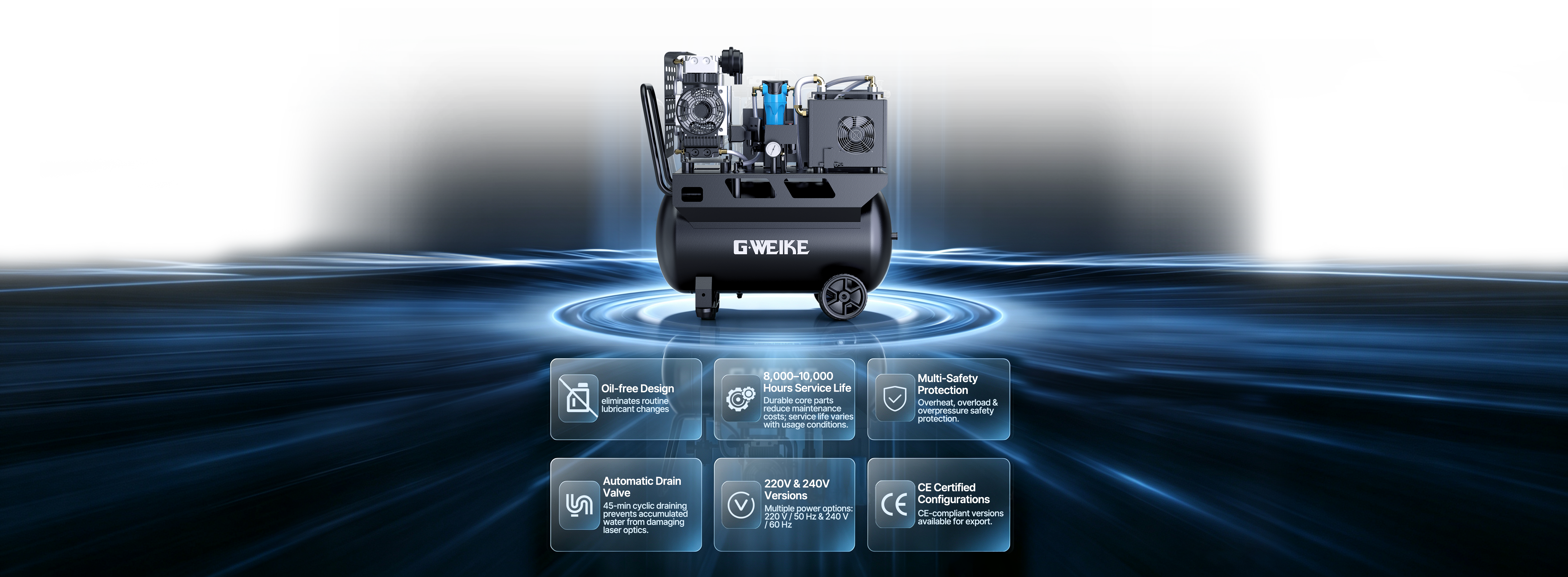

Low Maintenance | Multiple Safety Features
| Continuous Operation

Regular maintenance mainly involves checking and replacing the air filter. Basic service can be completed in approximately five minutes, depending on operator experience and maintenance conditions. One-button start-stop control and tool-free quick-change filters simplify daily operation and maintenance.

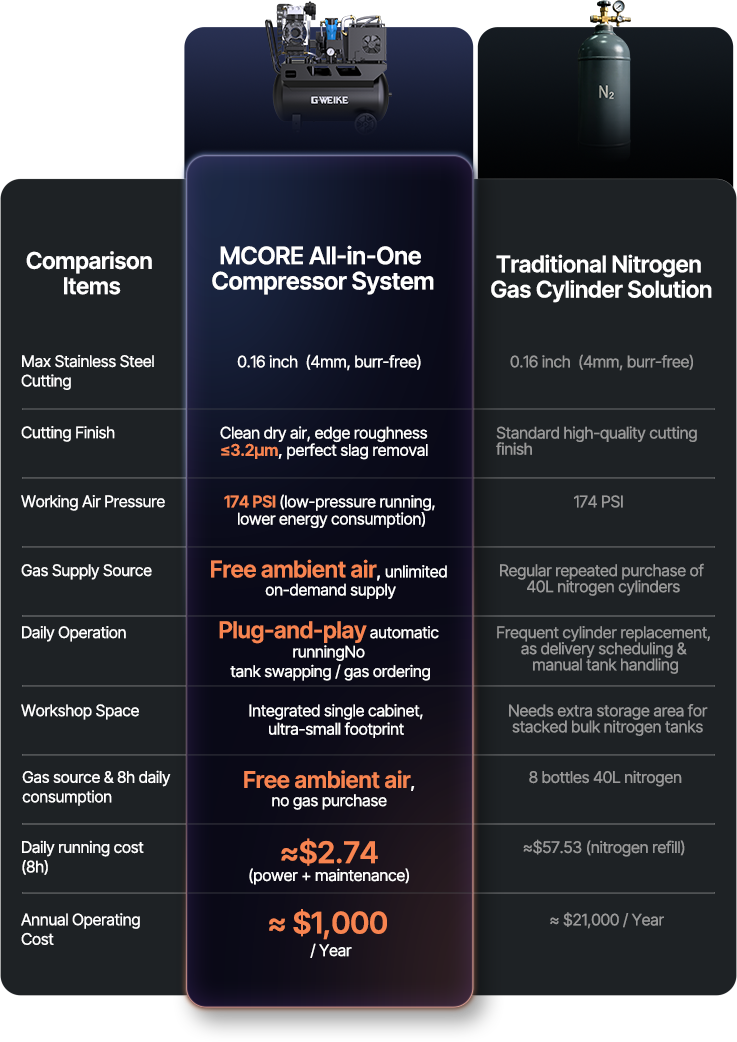

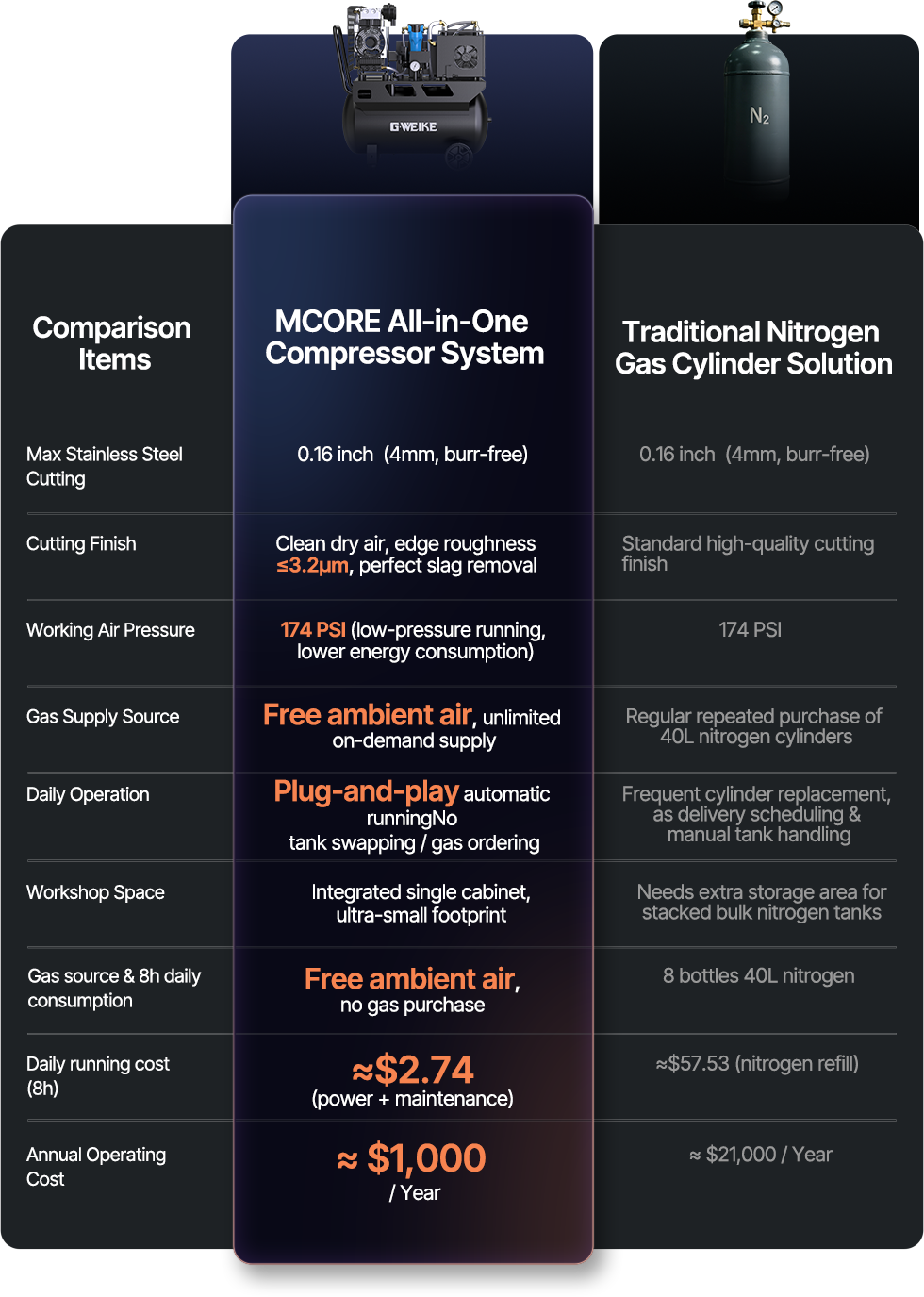

Why Do You Need a
GWEIKE All-in-One Air Compressor?

Product Specifications

Specification Value
Maximum Air Pressure 174 PSI (1.2 MPa)
Working Air Pressure 130–174 PSI (0.9–1.2 MPa)
Working Air Pressure 7.4 SCFM (210 L/min)
Tank Capacity 18.5 gal (70 L)
Rated Power 3.1 HP (2300 W / 2.3 kW)
Recovery Time 45 s from 0 to 145 PSI (0 to 1.0 MPa)
Noise Level <75 dB
Weight 154.3 lbs (70 kg)
Dimensions 31.7 × 15.6 × 32.7 in (805 × 396.5 × 811 mm)
Operating Voltage 220 V / 50 Hz; 240 V / 60 Hz
Pipe Diameter 0.39 in (10 mm)
Operating Temperature 41–104 °F (5–40 °C)
