M2/M3 Fiber Laser Protective Lens
1.99.8% 透過率—ARコーティングにより出力損失を最小限に抑制

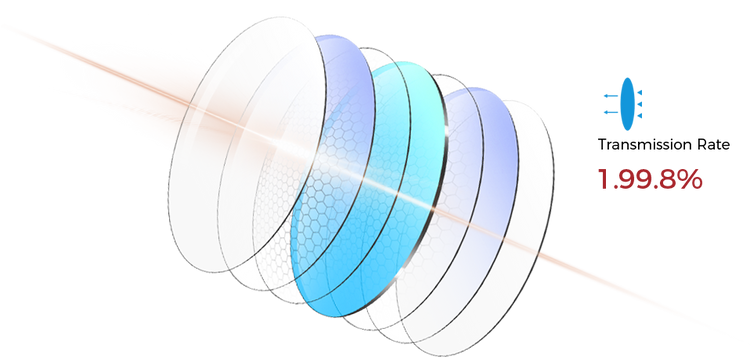

多層コーティング技術
Advanced Optical Engineering

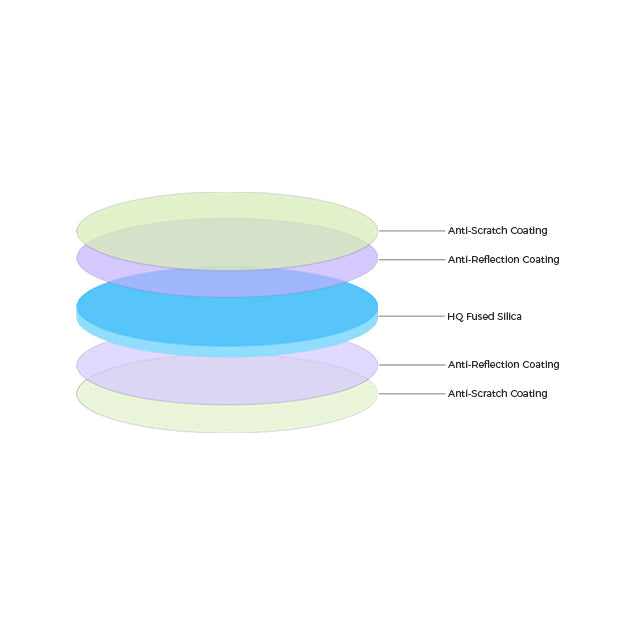

Inner Layer: Anti-Reflective Coating (AR)
→ Achieves 99.8% transmission rate (certified per ISO 9211-4)
Outer Layer: Hydrophobic Anti-Spatter Coating
→ Reduces metal slag adhesion by 70% vs. standard lens
Zero Wavefront Distortion
→ Maintains beam quality with M² variation <0.1

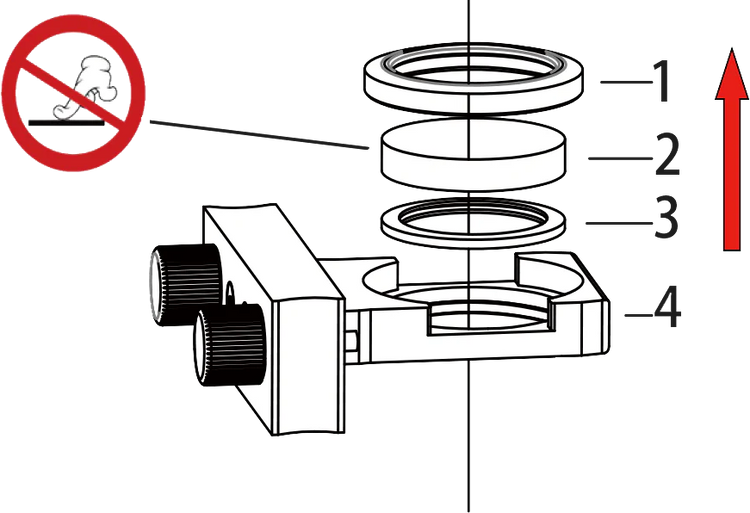

30 - 数秒で交換
特許取得済みスライドロック機構(ねじ・位置合わせ工具不要) 80%従来設計より高速(EN 1090-2に基づく試験)
パラメーター
- 対応モデル
M2/M3シリーズ
- 対応出力
800W/1200Wファイバーレーザー
- 透過率
>99.8%@1080nm(ARコーティング)
- 寸法
Φ20mm
- 表面硬度
モース硬度7
- 清掃間隔
稼働8時間ごと
