G2 PRO

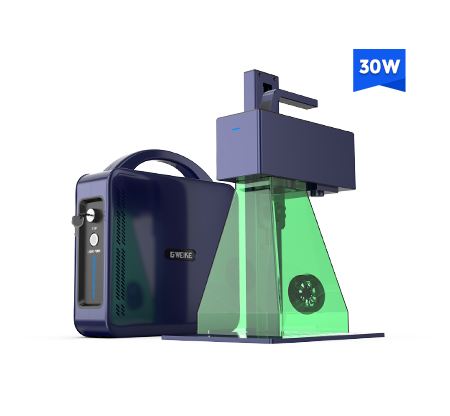

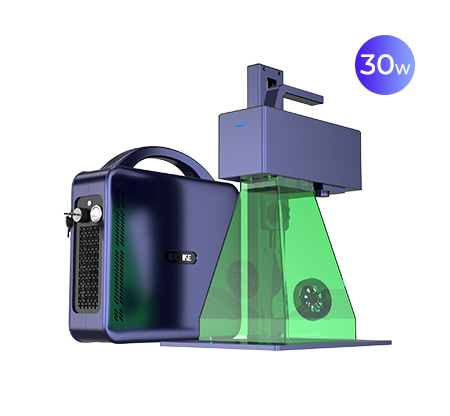

The World's First 30W Portable Fiber Laser Engraving Machine
G2 Pro




Comparison of G2 Series
Brass Cutting
Brass Deep Engraving
Slate Deep Engraving
- Material: 0.5mm Brass
- Speed: 10mm/s
- Power: 100%
- Pass:
-
50W: 4
-
30W: 7
-
20W: 11
- Material: Brass
- Speed: 1000mm/s
- Power: 100%
- Time: 2h
- Engraving Depth:
-
50W:
4.5mm
-
30W:
3.7mm
-
20W:
2.1mm
- Material: Slate
- Speed: 1000mm/s
- Power: 100%
- Time: 1h
- Engraving Depth:
-
50W: 3.2mm
-
30W: 2.3mm
-
20W:
1.7mm

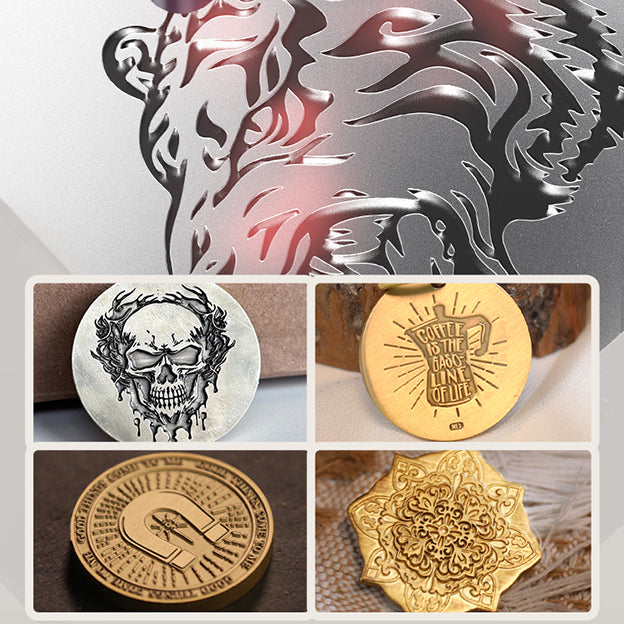

精密さの芸術を発見してください:
G2 の見事な彫刻の素晴らしさ
小規模ビジネスの成功のための究極の多用途ツール!

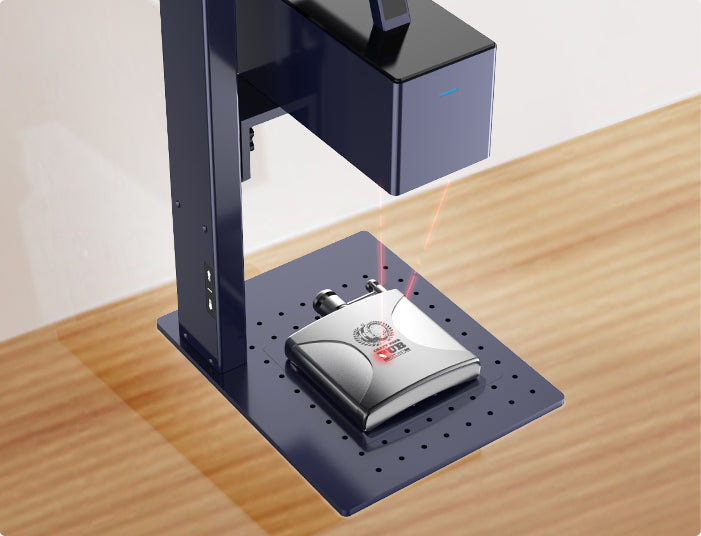

コンパクトかつ高機能 安全 いかなる環境にも対応
G2は完全密閉設計を採用しており、耐放射線ハウジングはレーザー光をフィルタリングすることができます。保護カバーの内側には強力なファンがあり、煙や埃を素早く除去します。

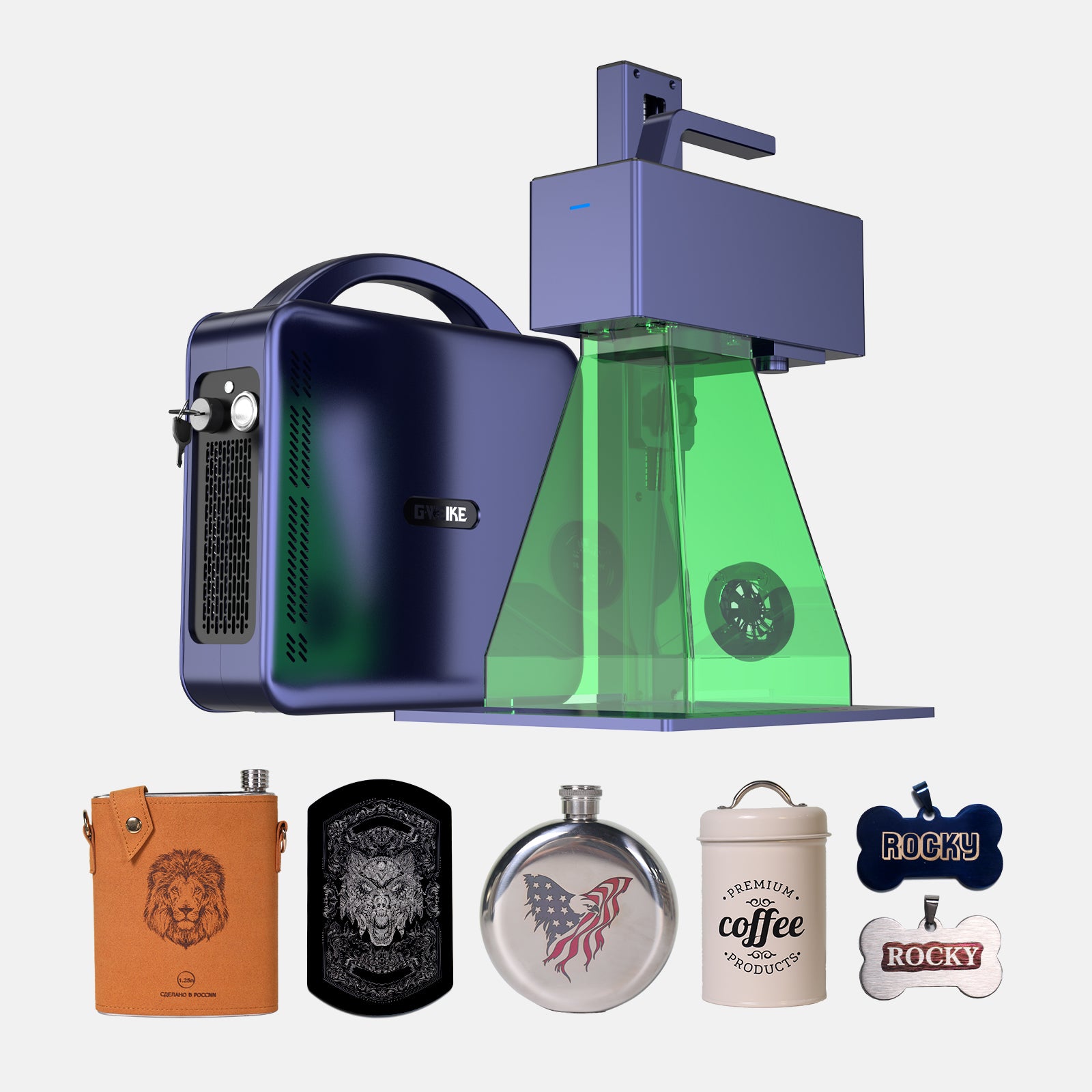

高精度な彫刻

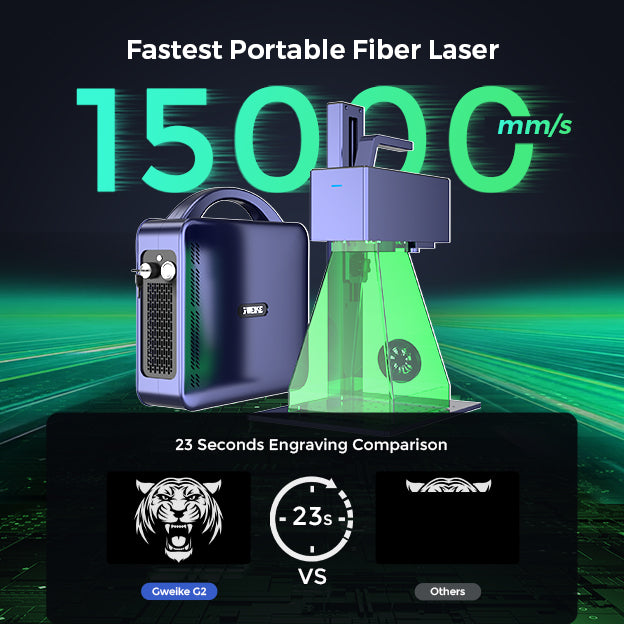

15,000 mm/s でほぼあらゆる材質に対応
- 金属
- プラスチック
- アクリル
- レザー
- 被覆金属
- 岩

Extraordinary Power for Deep Engraving
3mm

Max.depth on metal

*With an impressive 30W power, the G2 can engrave as deep as 3mm, expanding your creative possibilities.

信じられないほどの精度、鮮明な彫刻の詳細




Featuring an industrial-grade, ultra-high precision galvo, the G2 offers 0.001mm high-precision engraving, bringing your creations to life.
Featuring an industrial-grade, ultra-high precision galvo, the G2 offers 0.001mm high-precision engraving, bringing your creations to life.

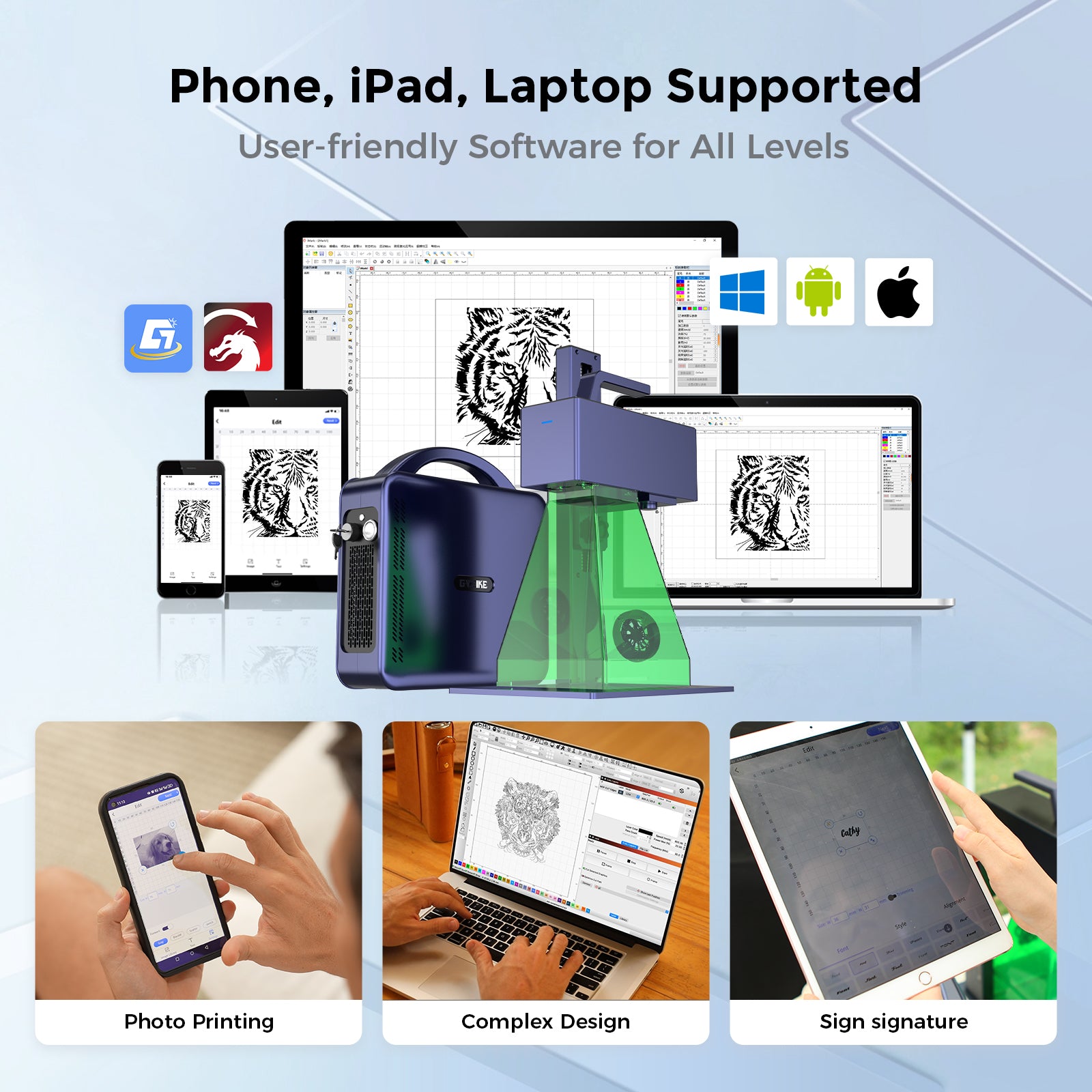

強力なソフトウェア
Gweike Cloud G2 シリーズは、Bluetooth および USB 接続とのシームレスな互換性を提供し、広範囲の入力ファイル形式をサポートします。
-
Glaser
GWEIKE Glaser CompatibleSupport system:Macos, Windows, IOS, Android
-
lightburnLightBurn CompatibleSupport system:Macos, Windows
多角度彫刻
-
多用途な手持ち彫刻
-
手持ちまたは傾斜した彫刻に最適

- 簡単なフォーカシング
- プレビュー
360°円筒回転彫刻
G2 ファイバーレーザー彫刻機:
あらゆるシーンに適した精度とスタイル。
Specifications
- Model G2 Pro
- Standard Marking Field 110mm*110mm/150mm*150mm
- Laser Type Ytterbium Fiber 0.67mj
- Laser Wavelength 1064nm
- Output Power 20W/30W
- Marking Speed 15000mm/s
- Repeat Accuracy ±0.001mm
- Minimum character 0.1mm
- Repeat Pulse Frequency Range 20 - 200 kHz
- Operation Temperature 15 - 35 ° C
- Cooling Method Air Cooling
- Supply Voltage 110-240 V 50-60Hz
- Power Consumption < 120 W
- PC Connection USB cable
- Certificates CE, FDA
- Color available St Patrick Blue / Rose Pink / Gulf Blue
- Net Weight 6.5Kg
- Machine Dimensions 260mm(L)*440mm(W)*505mm(H)

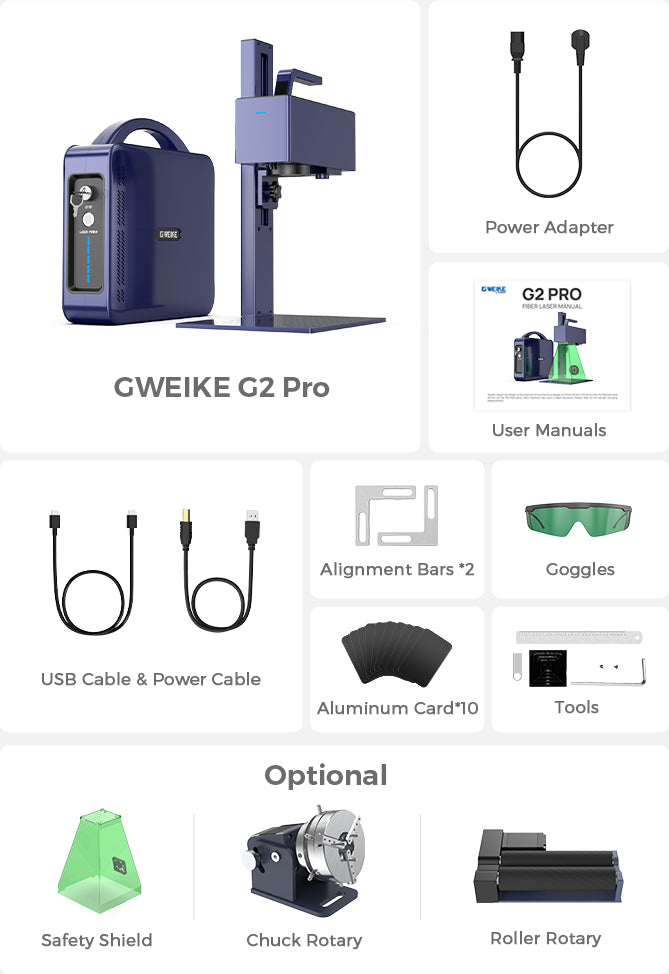

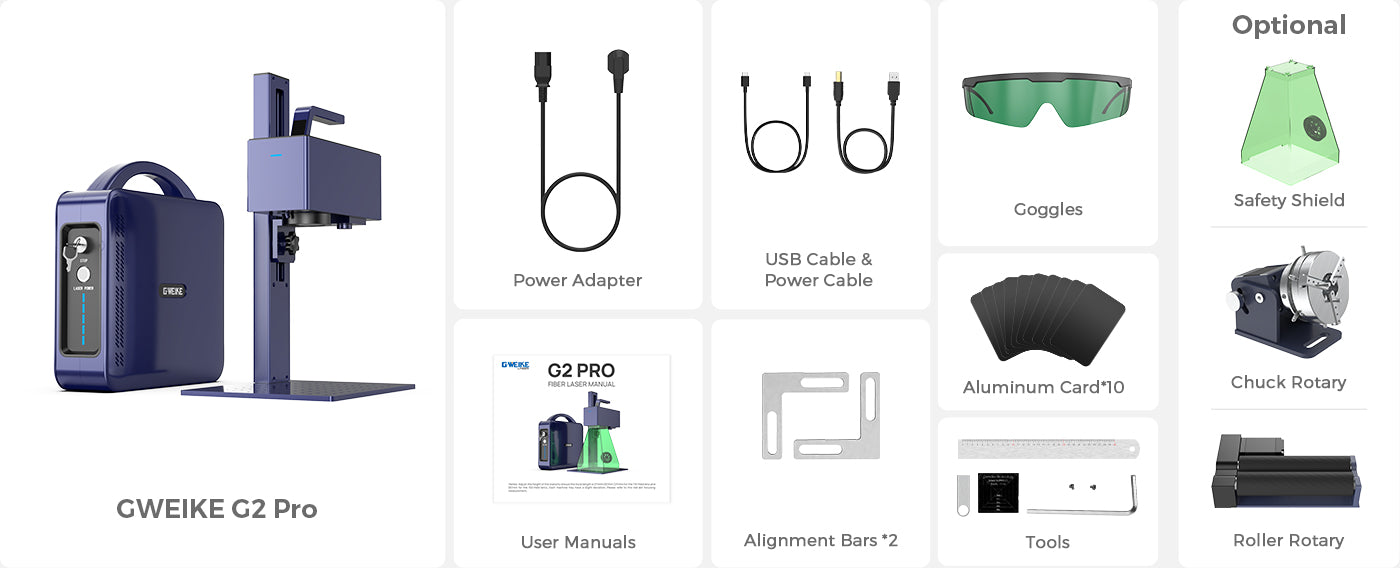

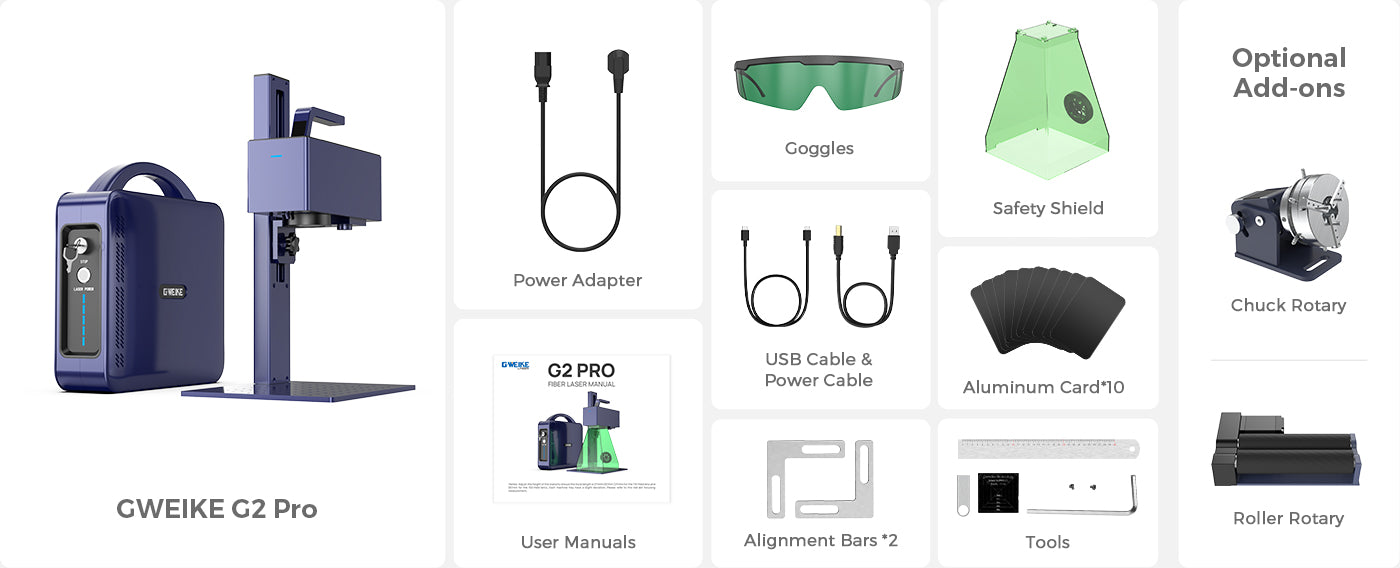

梱包一覧
