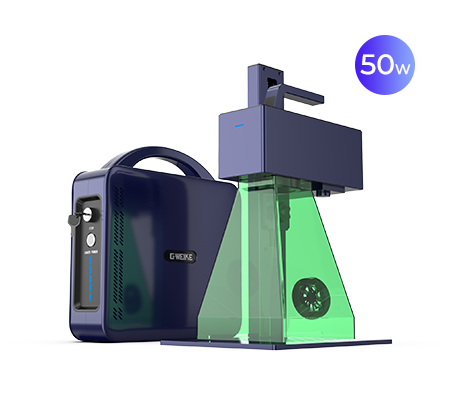

G2 50W

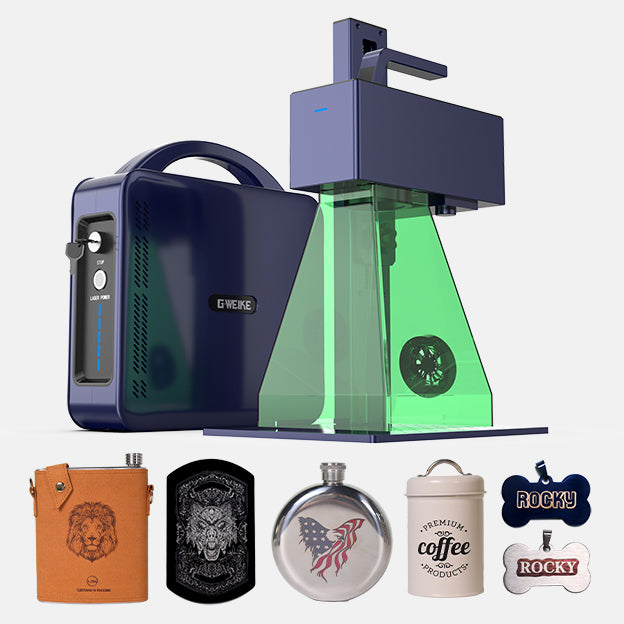

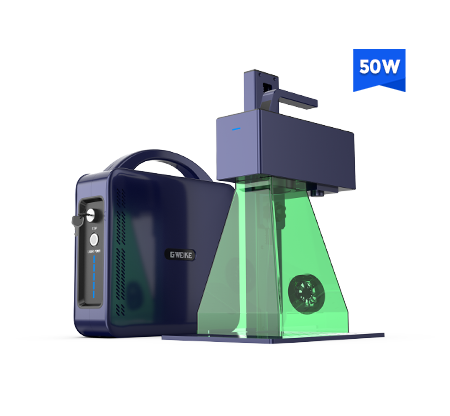

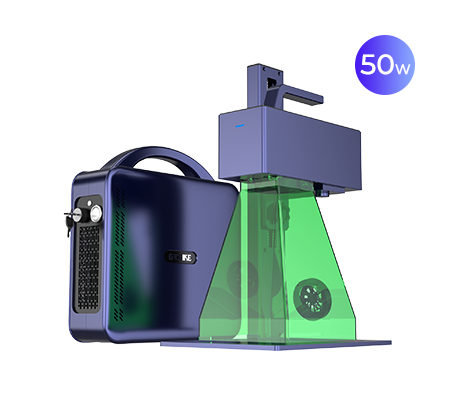

The World's First 50W Portable Fiber Laser Engraving Machine



Comparison of G2 Series
Brass Cutting
Brass Deep Engraving
Slate Deep Engraving
- Material: 0.5mm Brass
- Speed: 10mm/s
- Power: 100%
- Pass:
-
50W: 4
-
30W: 7
-
20W: 11
- Material: Brass
- Speed: 1000mm/s
- Power: 100%
- Time: 2h
- Engraving Depth:
-
50W:
4.5mm
-
30W:
3.7mm
-
20W:
2.1mm
- Material: Slate
- Speed: 1000mm/s
- Power: 100%
- Time: 1h
- Engraving Depth:
-
50W: 3.2mm
-
30W: 2.3mm
-
20W:
1.7mm
Discover the Art of Precision:
G2's Masterful Engraving Excellence
Stainless Steel
Brass
Gold
Silver
Titanium
Plastic
Aluminum
Acrylic
Leather
Iron
Coated Metal
The Ultimate Versatile Tool for Small Business Success!
Boutique
Home
Shops
Workshop
Compact and Highly safe for Any Environment
The G2 features a fully enclosed design with a radiation-proof shell that filters the laser. A powerful fan inside the protective cover quickly removes smoke and dust.

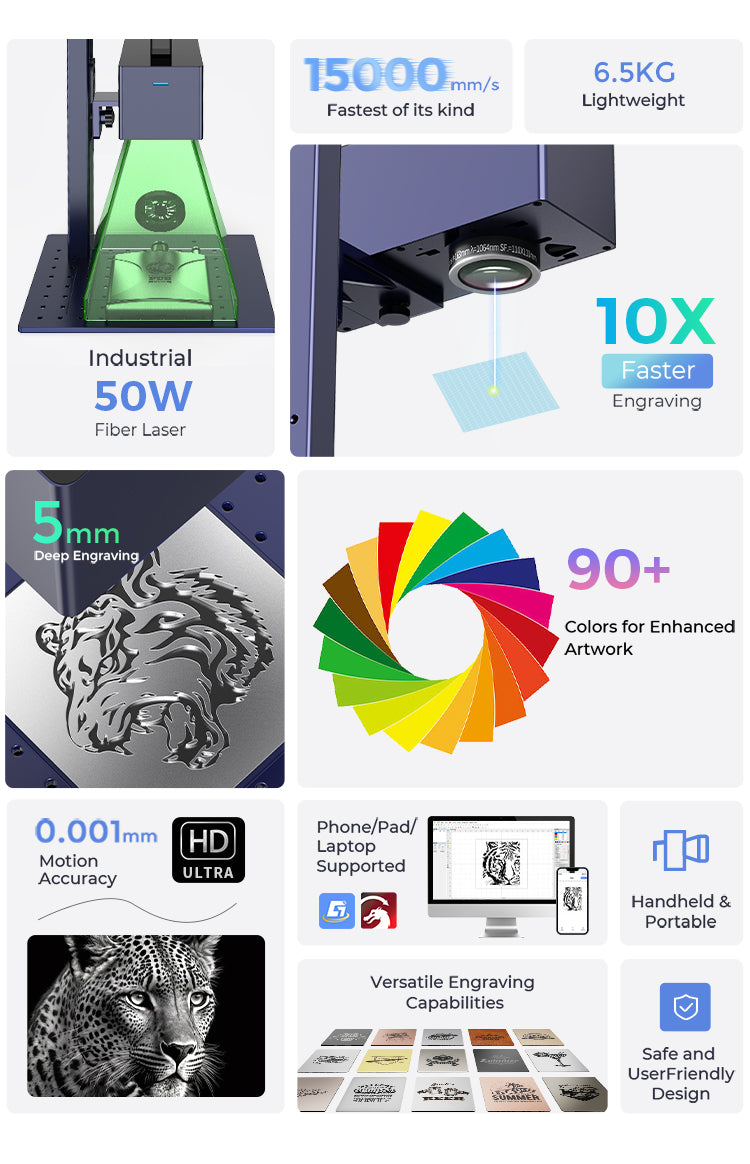

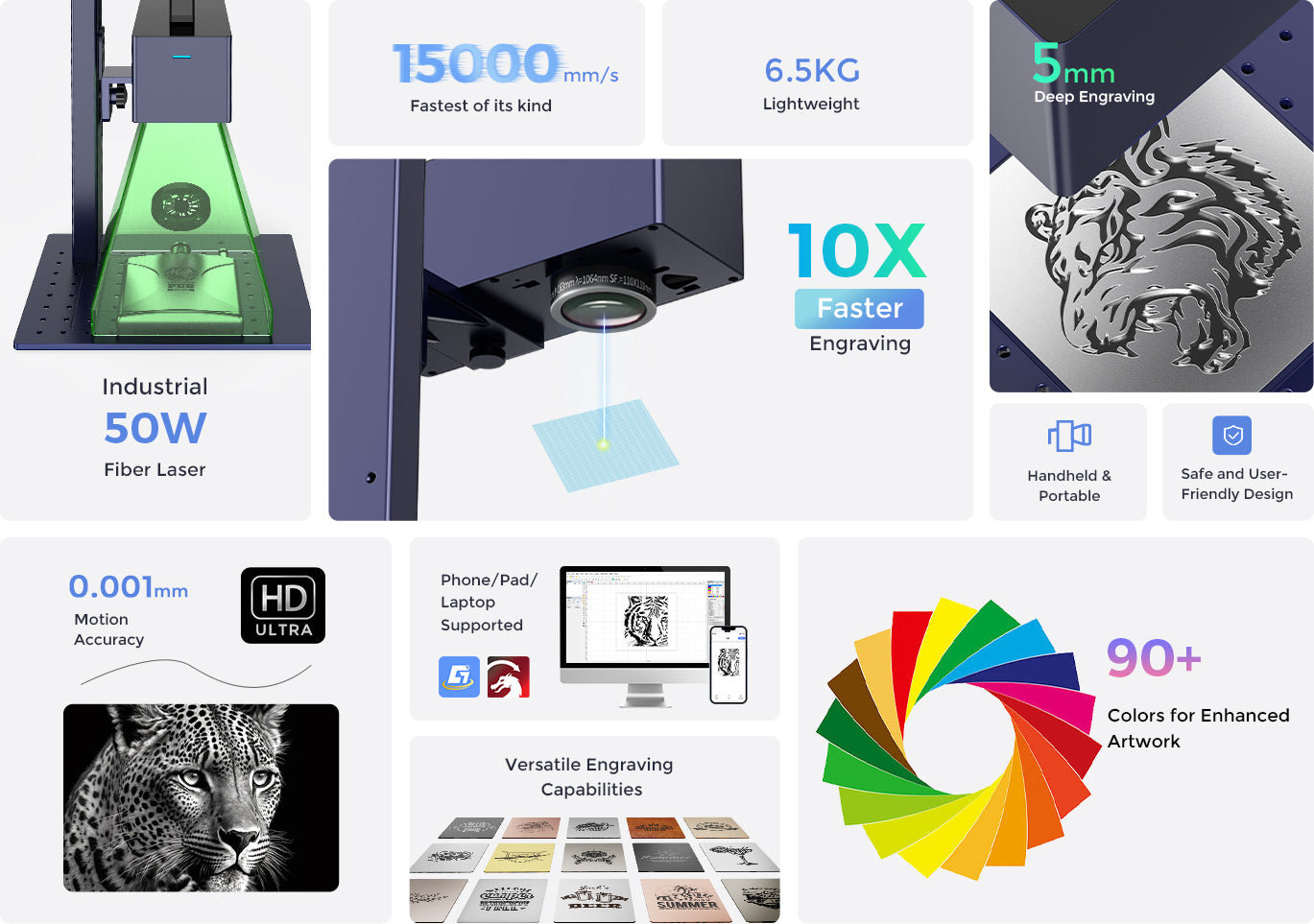

High-precision engraving
on nearly any material at 15,000 mm/s
- Metal
- Plastic
- Acrylic
- Leather
- Coated Metal
- Rock

並外れた深彫り能力
5mm

金属への最大彫刻深さ

*With an impressive 50W power, the G2 can engrave as deep as 5mm, expanding your creative possibilities.

Incredible Accuracy, Vivid Engraving Details




G2 は工業グレードの超高速ガルバノを使用し、0.001mm の高精度彫刻を実現して、作品に命を吹き込みます。
G2 は工業グレードの超高速ガルバノを使用し、0.001mm の高精度彫刻を実現して、作品に命を吹き込みます。
Powerful Software
The Gweike Cloud G2 series offers seamless compatibility with both Bluetooth and USB connections, supporting an extensive array of input file formats.
-
Glaser
GWEIKE Glaserに適応サポートシステム:Macos, Windows, IOS, Android
-
lightburnLightBurnに適応サポートシステム:Macos, Windows
Multi-Angle Engraving
-
Versatile Handheld Engraving
-
Perfect for handheld or inclined engraving

- Simple Focusing
- Previews
360° Cylindrical Rotating Engraving
The G2 Fiber Laser Engraver:
Precision and flair for any occasion.
製品仕様
- モデル G2 MAX
- 標準彫刻エリア 150mm*150mm
- レーザーの種類 Ytterbium Fiber 0.67mj
- レーザー波長 1064nm
- 出力パワー 50w
- 彫刻速度 15000mm/s
- 繰り返し精度 ±0.001mm
- 最小限の文字 0.1mm
- 繰り返しパルス周波数範囲 20 - 200 kHz
- 使用環境温度 15 - 35 ° C
- 冷却方法 空冷
- 供給電圧 110-240 V 50-60Hz
- 電力消費量 < 120 W
- PC接続 USBケーブル
- 証明書 CE, FDA
- 利用可能な色 聖パトリックブルー/ ローズピンク/ ベイブルー
- ネット重量 6.5Kg
- 機械寸法 260mm(L)*440mm(W)*505mm(H)

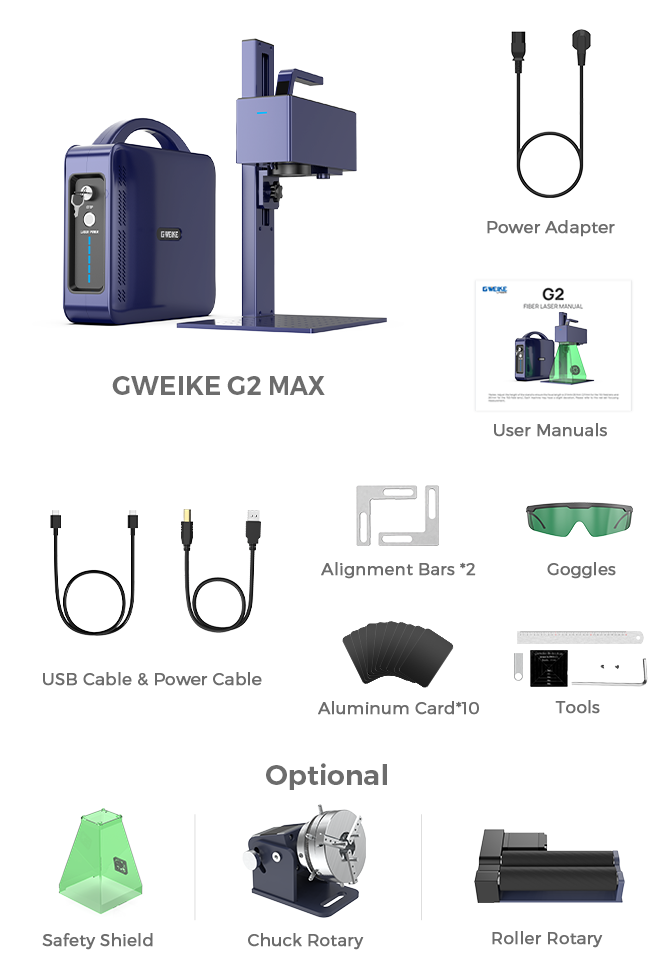

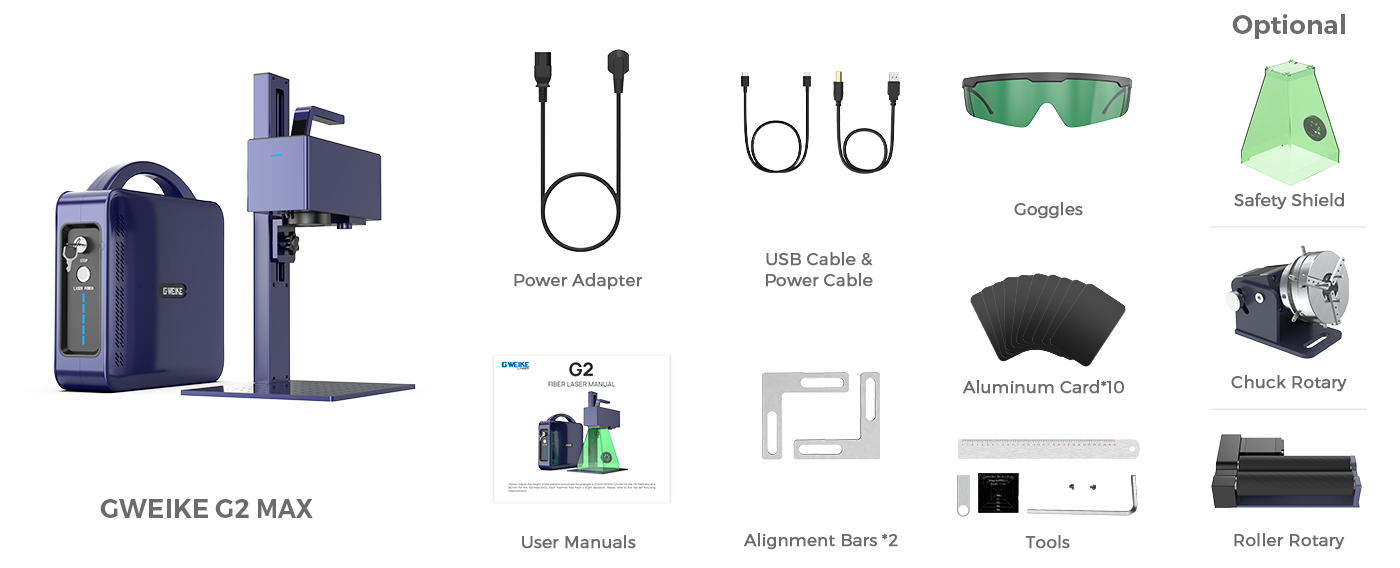

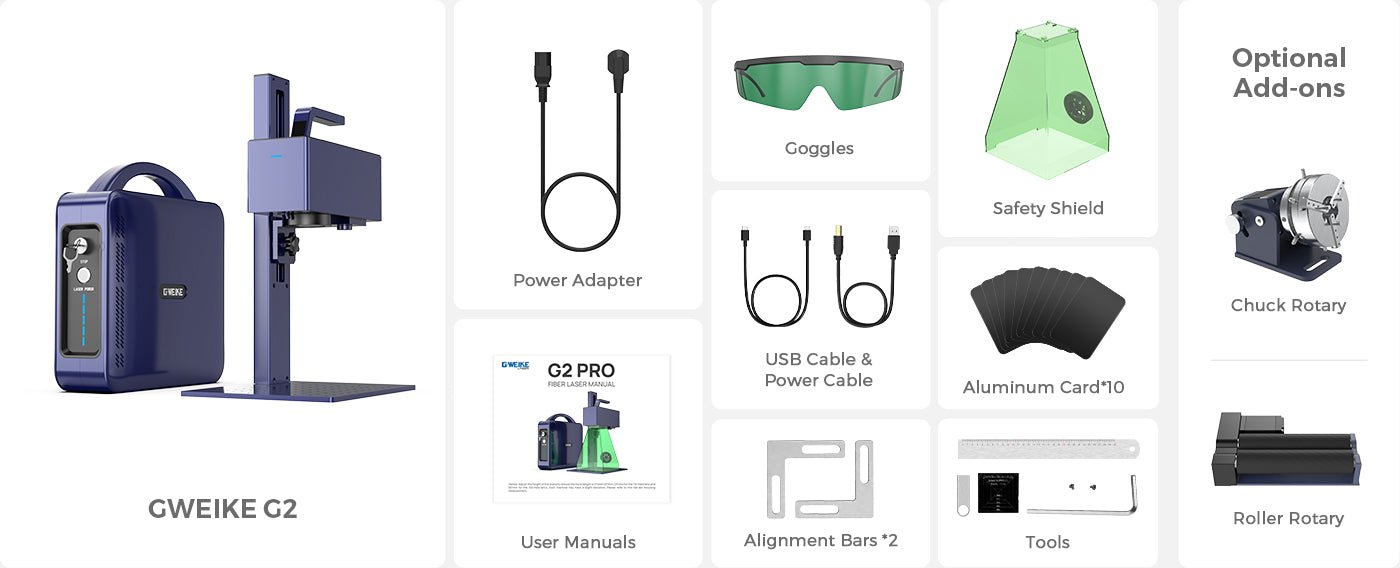

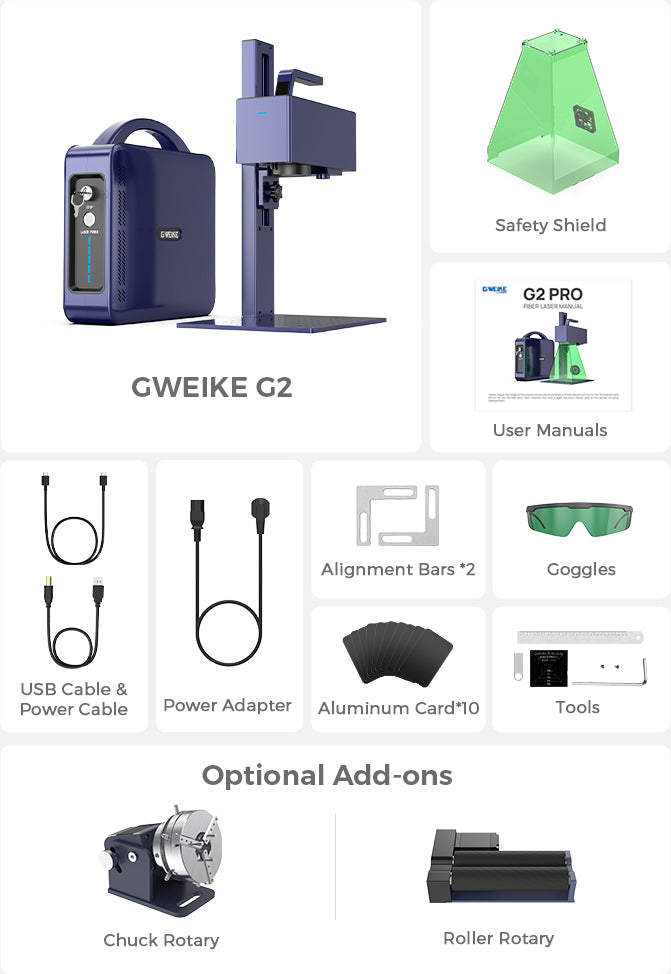

Package List
