Smooth, Strong, and Aesthetic Welds
Produces clean, spatter-free seams with high tensile strength and airtight sealing.
Features
Videos
New

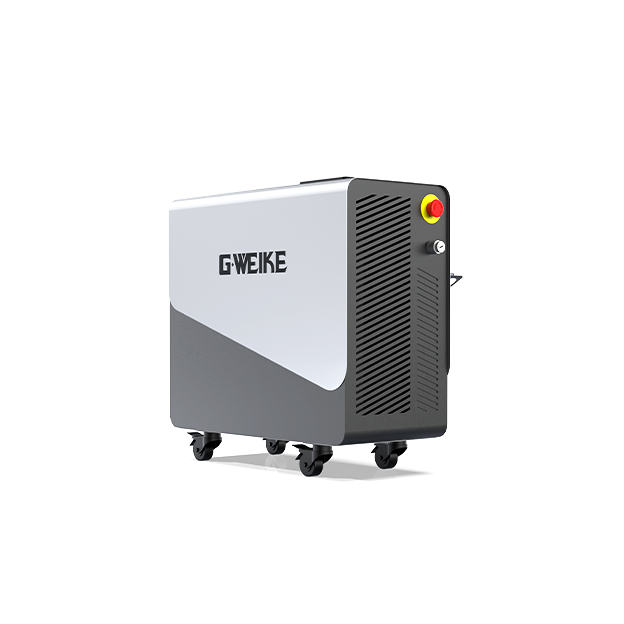

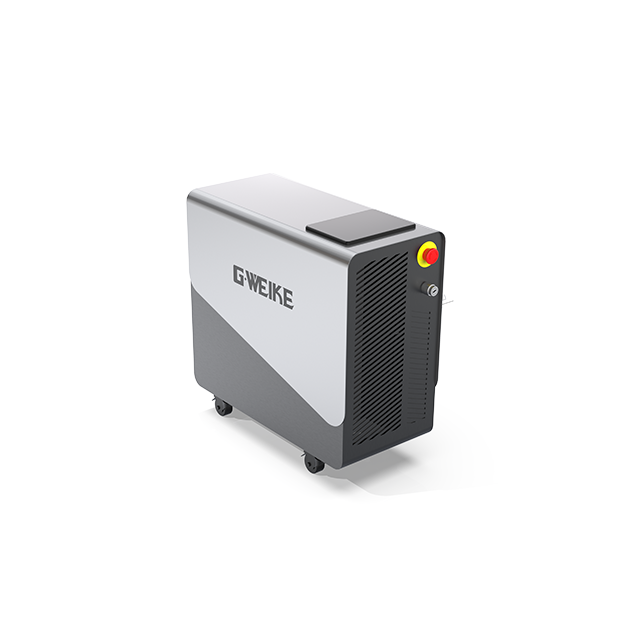

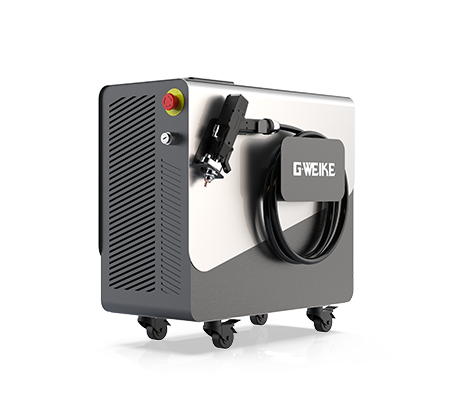

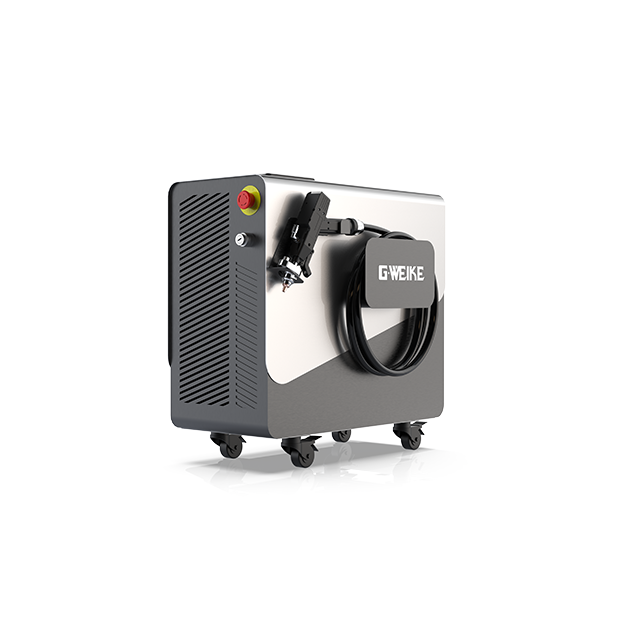

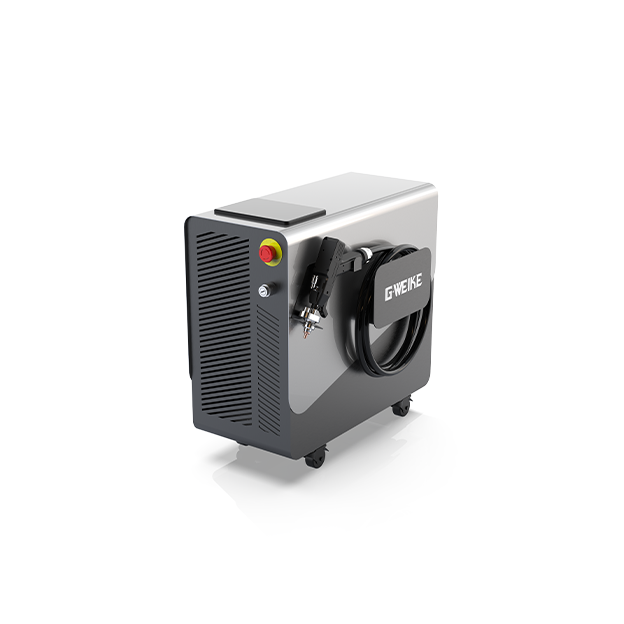

Portable Laser Welding Machine for Metal
Portable Laser Welding Machine for Metal
通常価格
$3,899.00
セール価格
$3,899.00
通常価格
$4,899.00
単価
あたり
Payments:
受取状況を読み込めませんでした
1. 6-in-1: welding / cleaning / thin-plate cutting
2. Multi-material support
3. Clean seams, minimal heat-affected zone (HAZ)
4. Handheld design, mobile and easy to maneuver

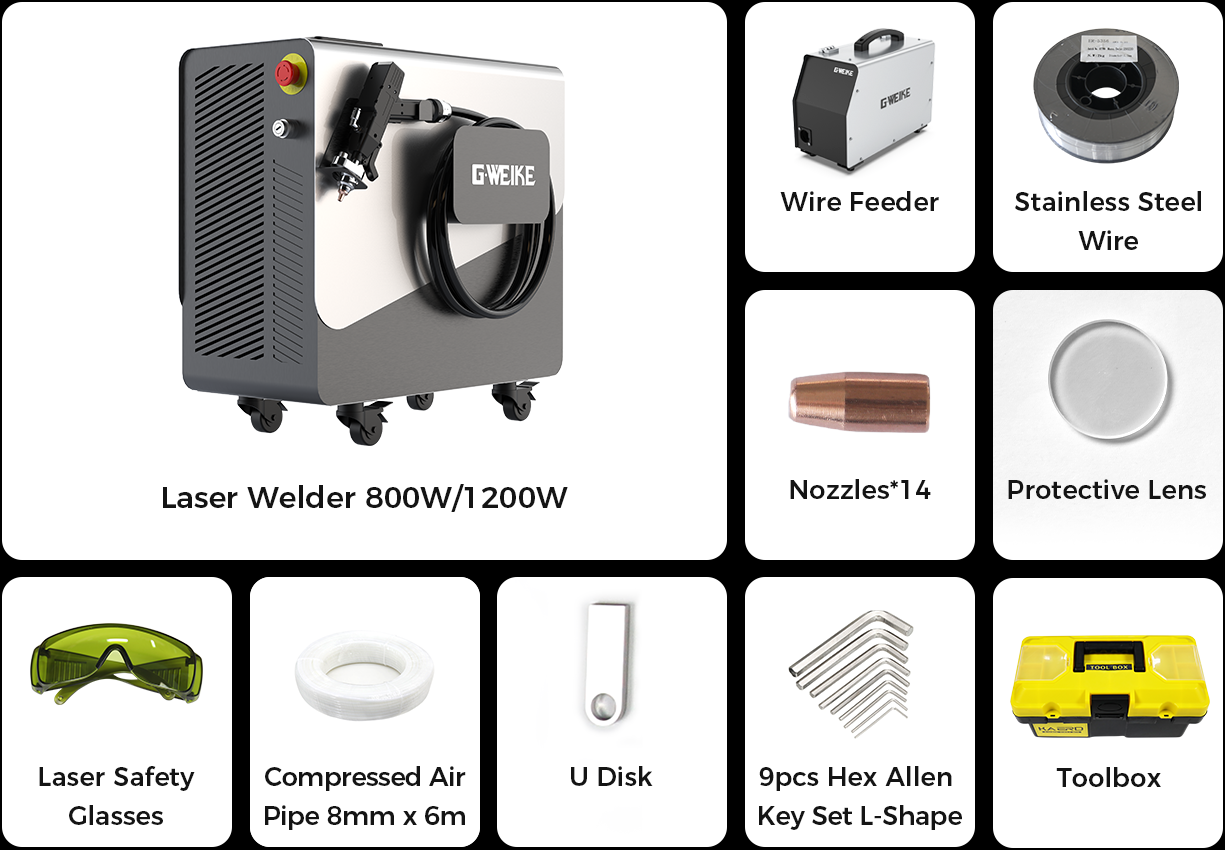

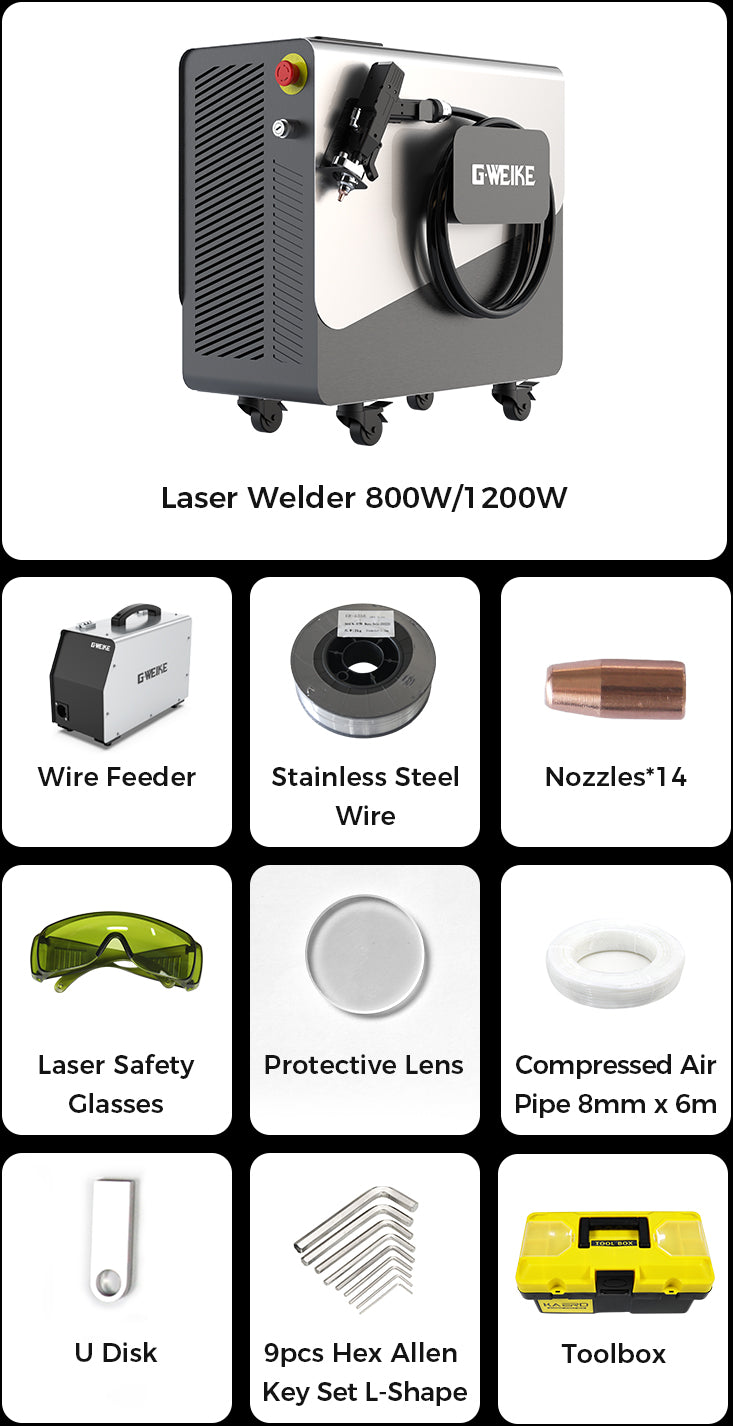

5. Complete specifications and accessory ecosystem
Redefining Laser Welding with Seamless Precision & Limitless Applications
-
Handheld Laser Welding
Laser welding can reach speed of 200–300 cm/min, while traditional MIG welding typically operates at 30–60 cm/min, depending on the material and thickness. This means laser welding can be up to 5 times faster, making it a superior choice for applications that demand both speed and precision.
-
Handheld Laser Cleaning
Laser cleaning is an efficient, environmentally friendly, precise, and versatile modern industrial cleaning technology that is gradually replacing traditional chemical and mechanical cleaning methods.
With up to 20.0mm cleaning width, you can cover more surface in a single pass, making rust, paint, and residue removal faster and more efficient. Ideal for both precision work and large-area cleaning. -
Handheld Laser Cutting
Cutting becomes more accessible and flexible, opening up a world of creative possibilities. Whether working with curved shapes or intricate patterns, you can achieve smooth, fluid designs without the constraints of traditional tools. Supports material thickness from 0.5mm to 3.0mm, making it ideal for both artistic projects and practical applications.
Mastering All Material Thicknesses and Welding Methods
-
-
Wide Material CompatibilityWelds stainless steel, aluminum, copper, titanium, and more with ease, handling thicknesses from ultra-thin sheets (0.1mm) to medium plates.
-
Multi-mode Welding
M Series supports spot welding, continuous welding, and pulse welding modes to meet a wide range of fabrication needs.
Underwater Welding
The welding nozzle can be submerged in water for high-quality welding without affecting performance. It poses no electrical risk, ensuring safe and stable operation underwater.
Supports a Wide Range of Materials
Built to Seamlessly Weld Stainless Steel, Aluminum, Copper, Carbon Steel, and More
100+ Materials. One Touchscreen to Master Them All
The intuitive smart touchscreen simplifies your workflow. It features a built-in library with processing parameters for over a hundred materials, allowing you to quickly select commonly used options and switch effortlessly between laser welding, cleaning, and cutting. You can also save and instantly recall custom settings for maximum efficiency.
Works Reliably In Most
Temperatures 7*24-hour continuous working test
Welding speed is more
than 5 times
that of traditional TIG weldingExperience the Beauty of Metal
Specifications
Laser Welder 1200W
Laser Welder 800W
Processing Capacity
- Laser Type
Fiber Laser
Fiber Laser
- Laser Power
1,200W
800W
- Functions
Welding / Cutting / Rust Removal & Cleaning
Welding / Cutting / Rust Removal & Cleaning
- Welding Mode
Continuous / Spot / Pulse Welding
Continuous / Spot / Pulse Welding
- Processing Thickness
0.2 - 4 mm(0.0078 - 0.157 in)
0.2 - 5 mm(0.0078 - 0.197 in)
- Wavelengths
1,080 ± 10 nm
1,080 ± 10 nm
- Auxiliary Gas
Nitrogen / Argon / Air
Nitrogen / Argon / Air
- Cooling Method
Air Cooling
Air Cooling
- Laser Safety Class
Class 4
Class 4
- Operating Temperature
14 °F ~ 104 ℉ (-10 ℃ ~ 40 °C)
14 °F ~ 104 ℉ (-10 ℃ ~ 40 °C)
- Machine Dimensions
620 × 355 × 610 mm (25.6 × 14.0 × 24.0 in)
620 × 355 × 610 mm (25.6 × 14.0 × 24.0 in)
- Machine Weight
49.2 kg / 108.5 lbs
49.2 kg / 108.5 lbs
- Wire Feeder Weight
10.8 kg / 23.8 lbs
10.8 kg / 23.8 lbs
- Cable Length
8m
8m
