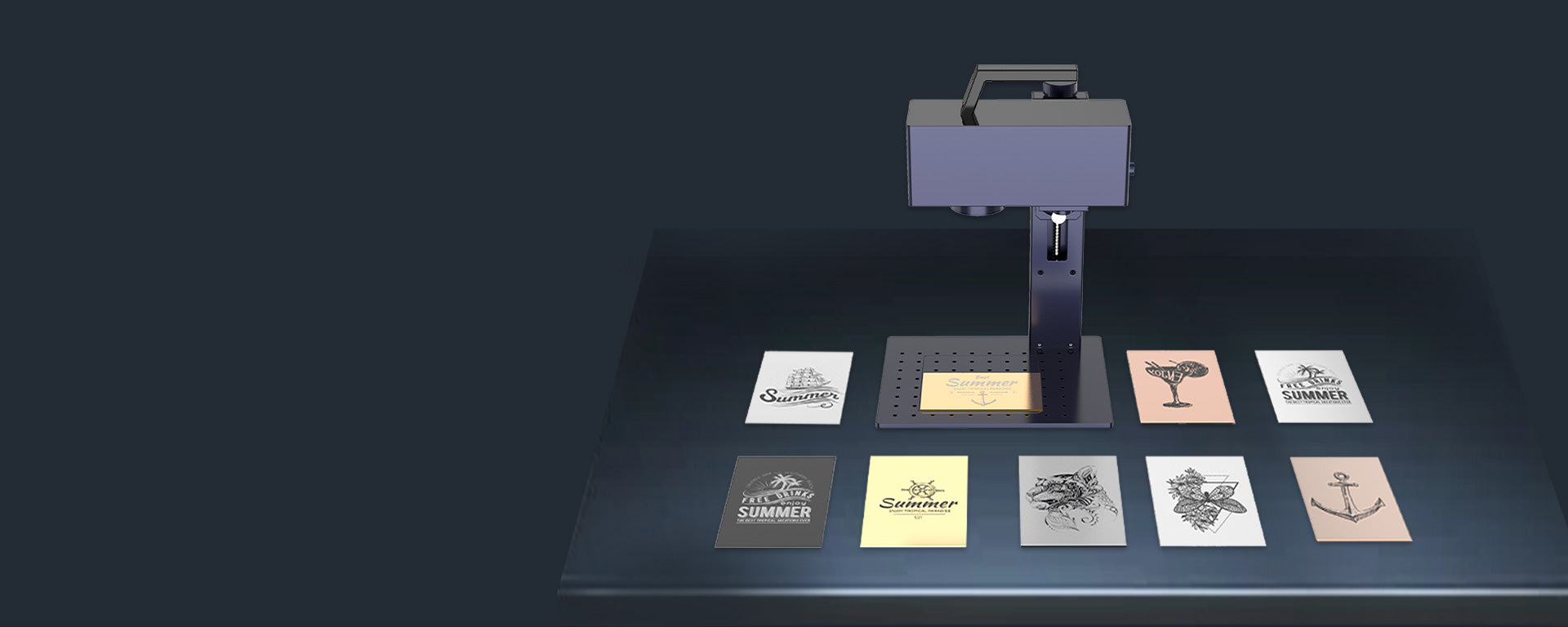

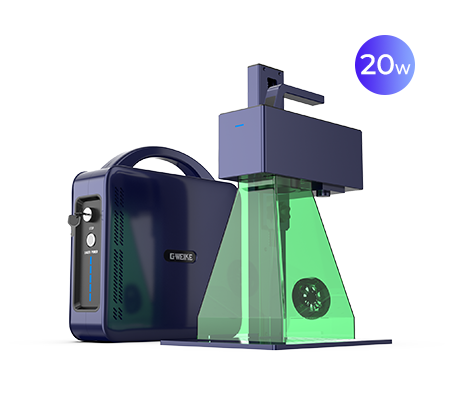

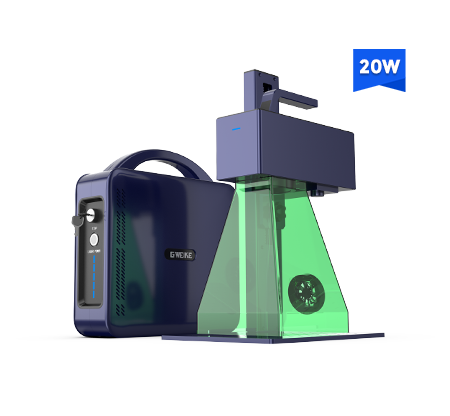

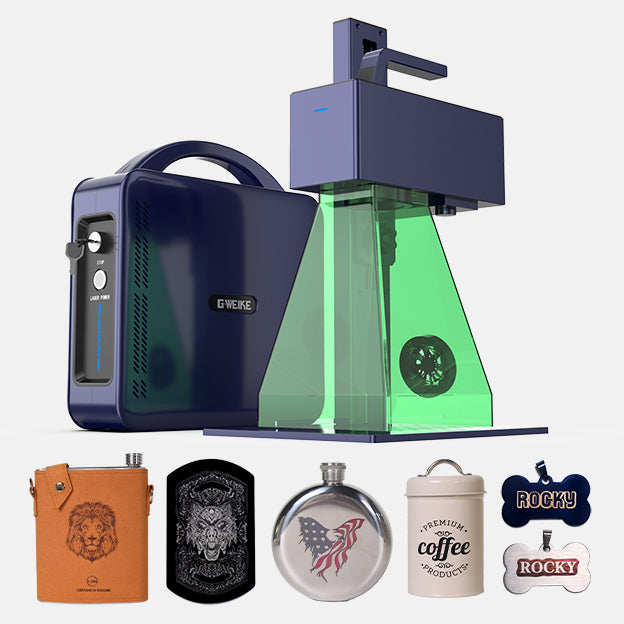

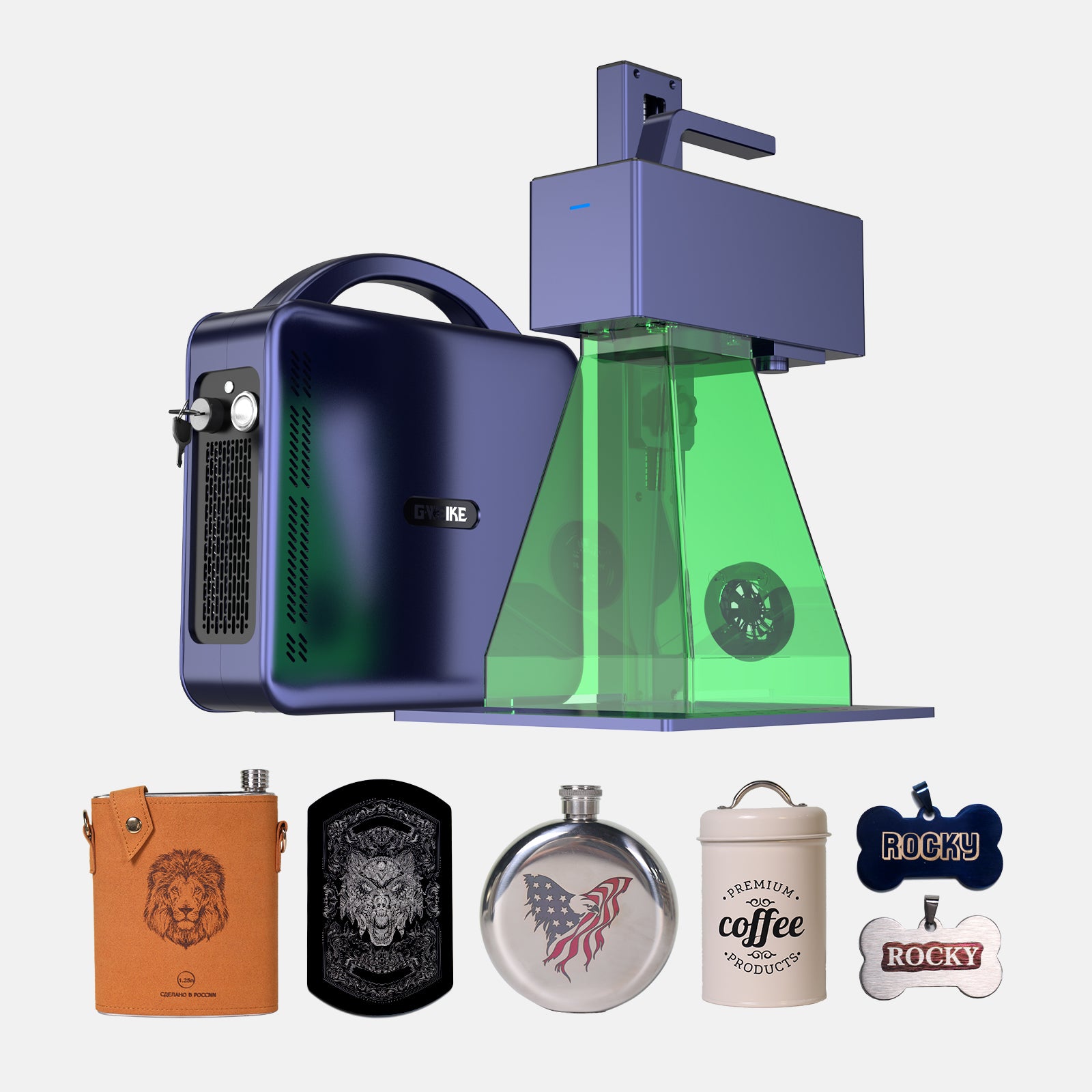

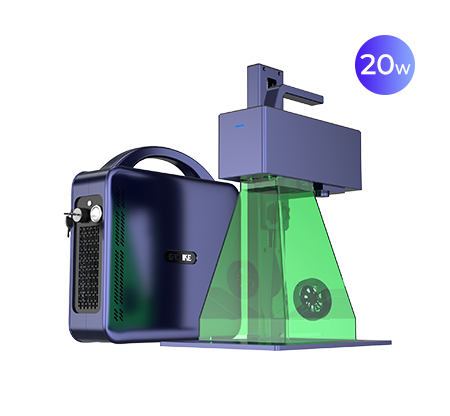

G2 20W 金属&プラスチック用ファイバーレーザー彫刻機

G2 20W 金属&プラスチック用ファイバーレーザー彫刻機

通常価格 $1,599.00
セール価格 $1,599.00 通常価格 $2,499.00
セール 売り切れ
SAVE $1000
予約注文
Payments: PayPal Visa Mastercard American Express Discover JCB Klarna

保証

2 年

配送&返品

米国/カナダ/EU/英国/オーストラリアの場合は送料無料です

1.商品の発送にどの宅配便を使用しますか?
お住まいの地域に応じて、DHL、Fedex、または JF を使用します。

2. 注文したら、いつ届きますか?
支払いが確認されたら、すぐに発送を手配します。通常は 7 ~ 30 日かかります。 あなたの場所に応じて。

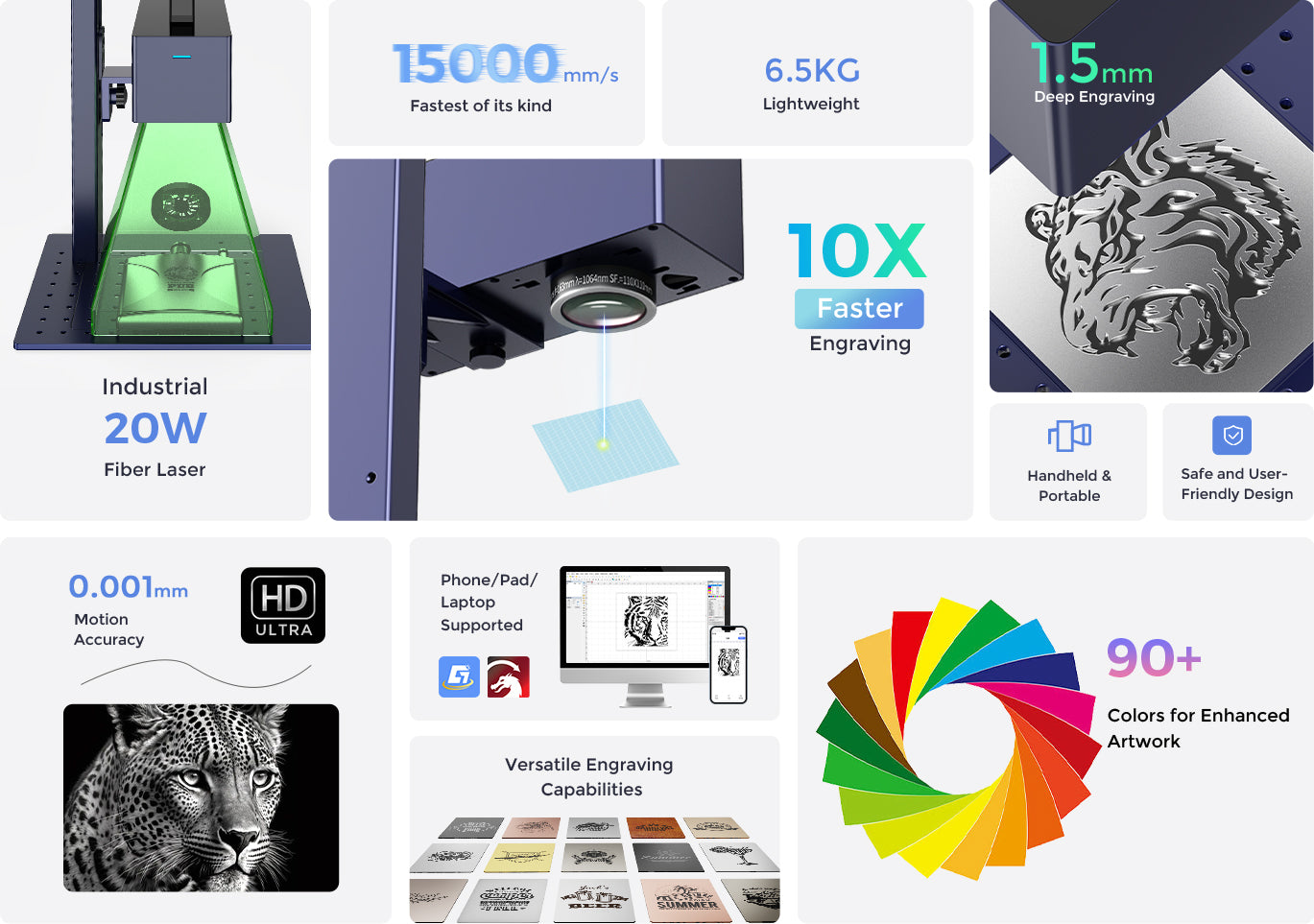

1. 最大速度15000mm/s
2. 100k 時間の寿命
3. 卓越した精度
4. デスクトップ&ハンドヘルド2 in 1
5. オートリフト&マニュアルリフト
6. 作業エリア110 * 110mm &150 * 150mm
7. 鮮やかな色の彫刻
詳細を表示する

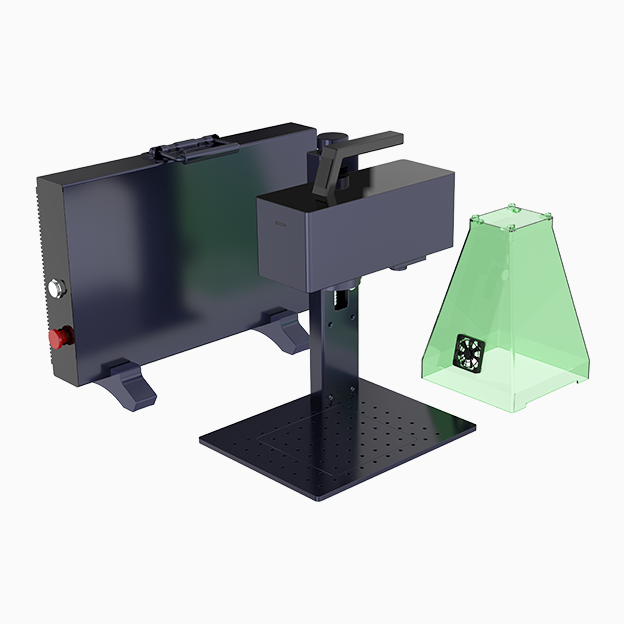

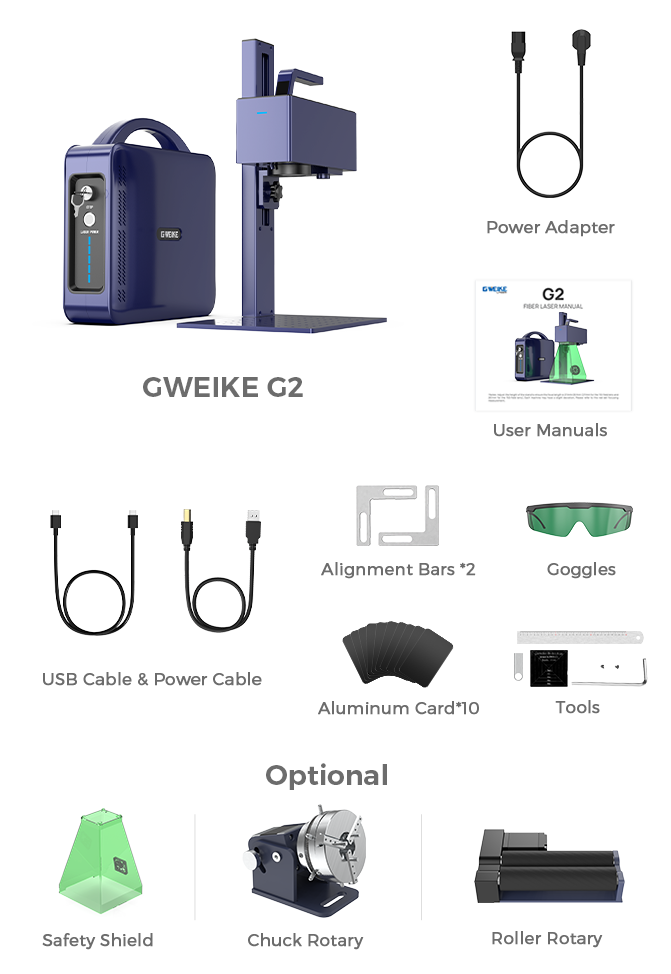

パッケージ一覧

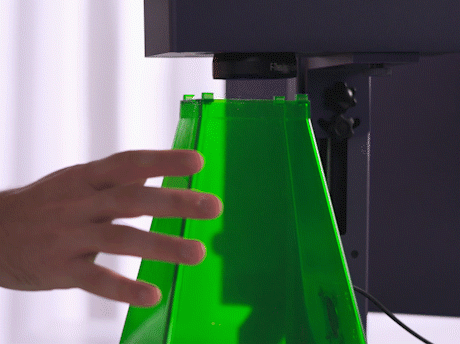

無料の安全シールドを入手

19th ANNIVERSARY

無料の安全シールドを入手

超高速電流計

Gweike G2 の 20 W の連続電力は、並外れた速度を実現する検流計と組み合わされて、Gweike G2 の非常に高速で深い彫刻機能を推進します。

検流計スキャン マーキングは、ベクトル マーキングとドット マトリックス マーキングを実行できます。 調整可能なマーキング範囲、素早い応答、速いマーキング速度 (1 秒あたり数百の文字を再生可能)、高いマーキング品質、良好な光路シール性能、環境への強力な適応性などが特徴です。

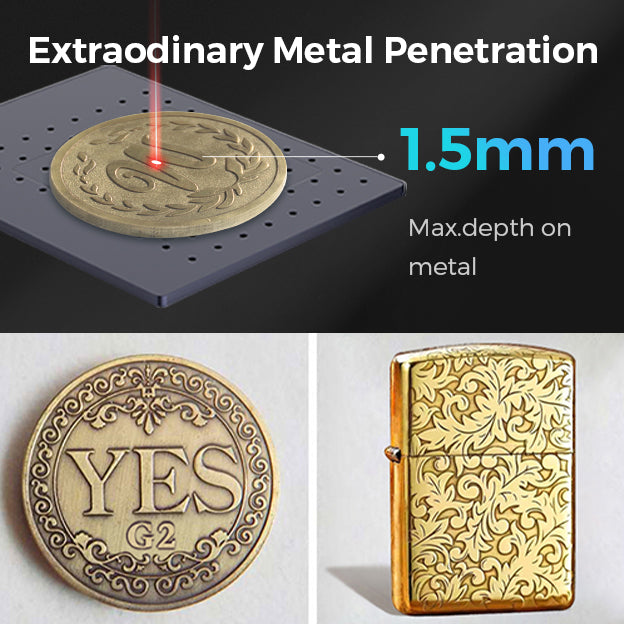

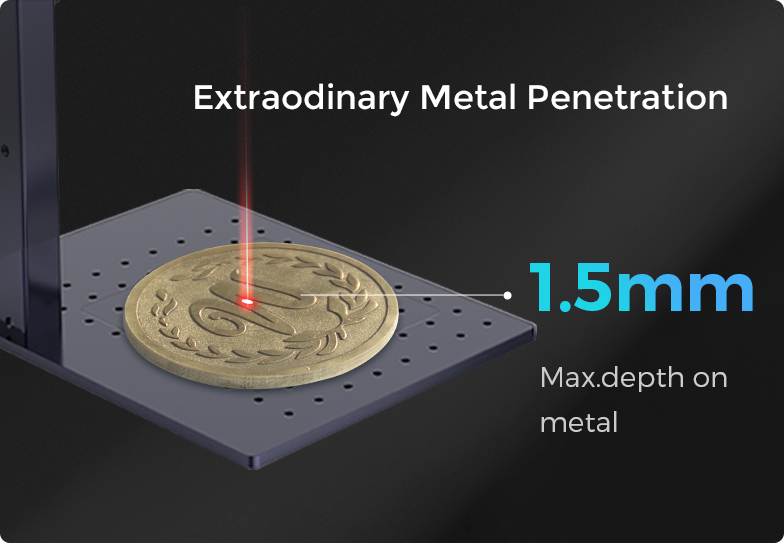

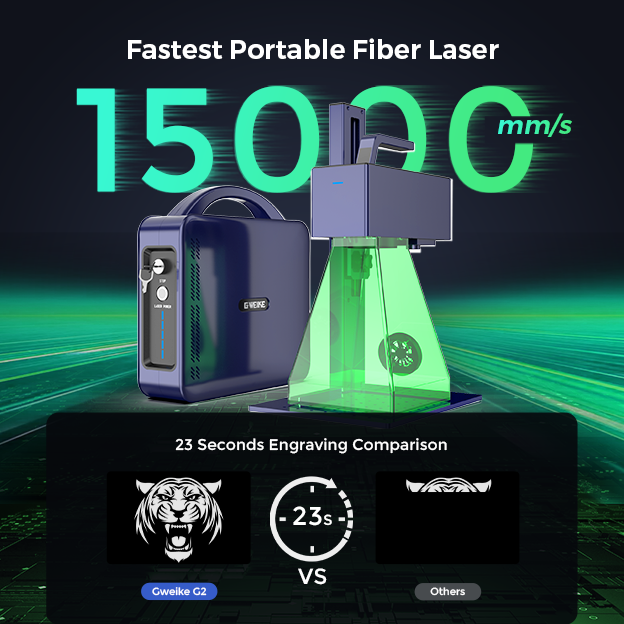

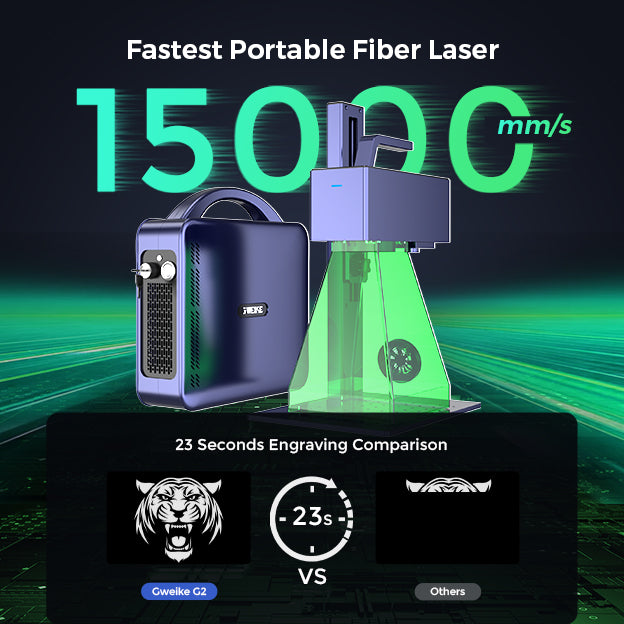

Gweike G2 には最先端のファイバー レーザー レンズが装備されており、この組み合わせにより比類のないスピードと卓越した安定性を実現します。 15000mm/s の彫刻速度を示す G2 は、標準的な市場競合他社の能力を大幅に超えています。 これは彫刻技術の大幅な進歩であり、単に速いだけでなく、10 倍も速い速度を達成しています。 この 10 倍の速度向上により、これまで想像できなかった豊富な可能性が開かれます。

タスクの複雑な要件に応えるために、2k、4k、8kという 3 つの異なる彫刻解像度を選択できます。
これらのオプションにより、最適な詳細レベルに簡単にアクセスできるようになり、シームレスで高度に洗練された彫刻プロセスが可能になります。

30色以上

ステンレススチールとチタンのさまざまな豪華なカラー

電動リフト

Gweike G2 には、上下ボタンを長押しすることで作動する自動昇降機能が備わっています。 この機能により、ユーザーの利便性と彫刻深さの調整の精度が向上し、Gweike G2 は詳細な彫刻作業と大量の彫刻作業の両方に役立つツールになります。

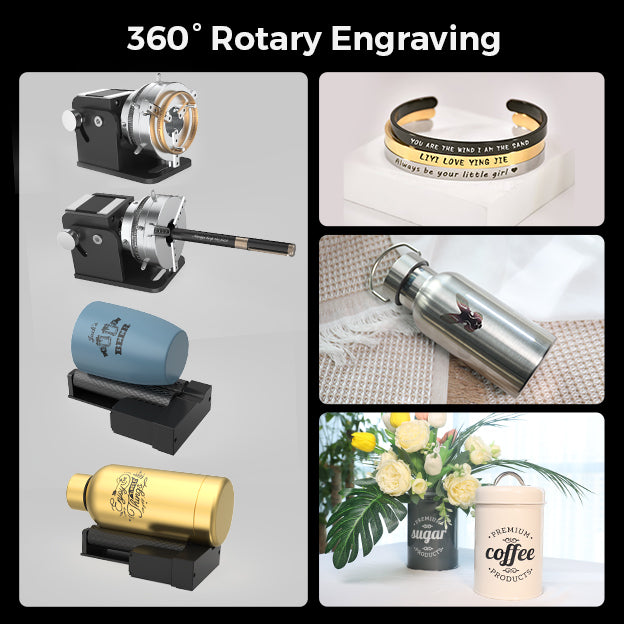

  • ローラーロータリー

  • チャックロータリー

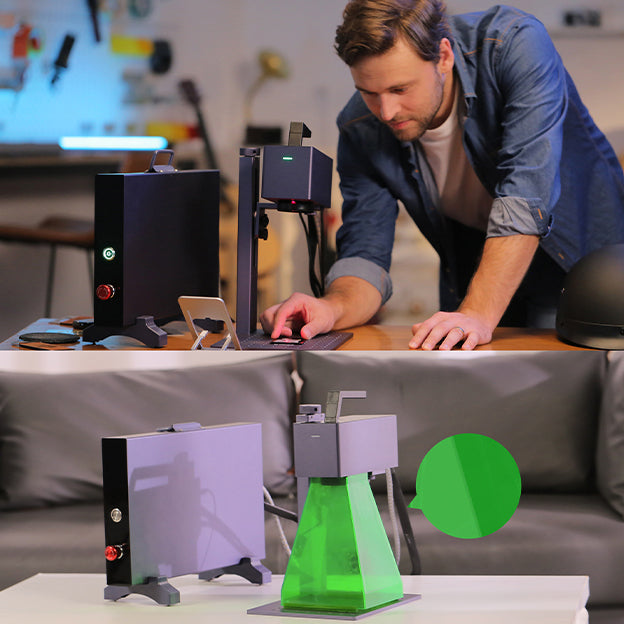

どこでも手持ち彫刻でき

手持ち彫刻

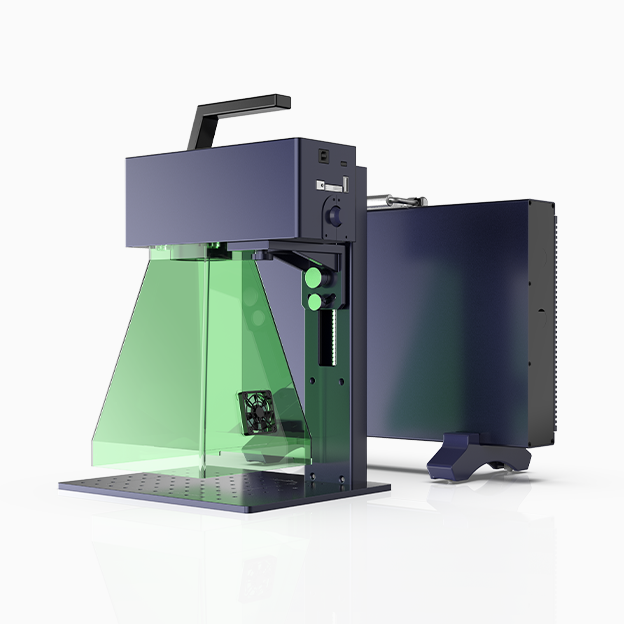

G2 は取り外し可能な構造で独創的に設計されており、従来のワークベンチの範囲を超えて彫刻機能を拡張します。

マルチアングル彫刻

G2 の機動性は創造性と機能性を促進し、幅広い状況や表面にわたってパーソナライズされた彫刻を可能にします。

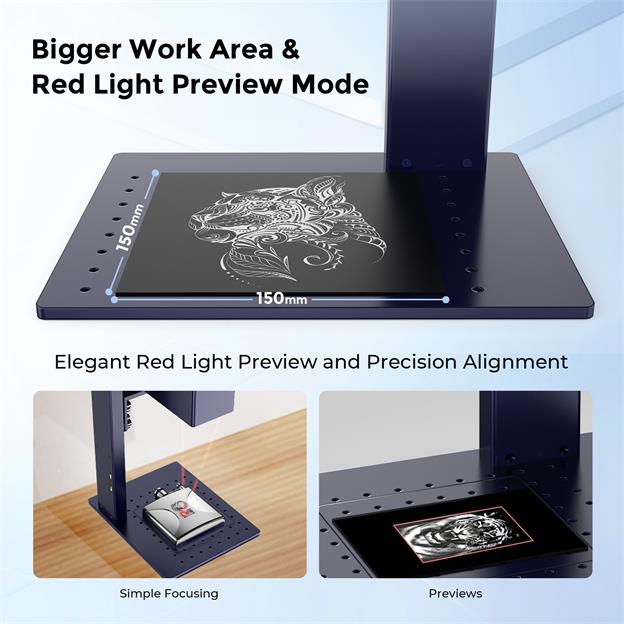

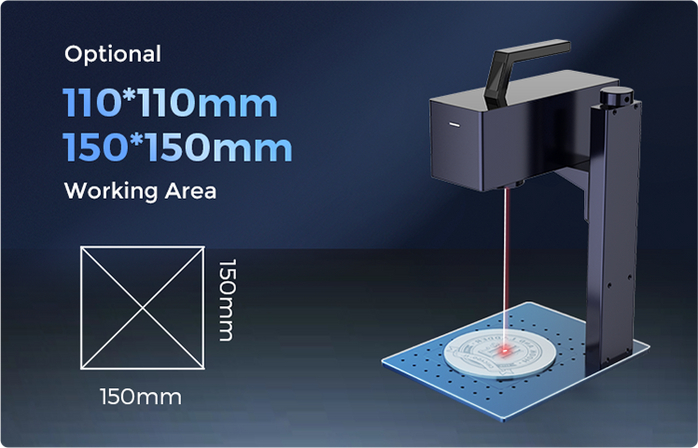

大きな視野

オプションの作業領域は、ビジネスのさまざまな要件に応え、プロジェクトを向上させることを目的としています。

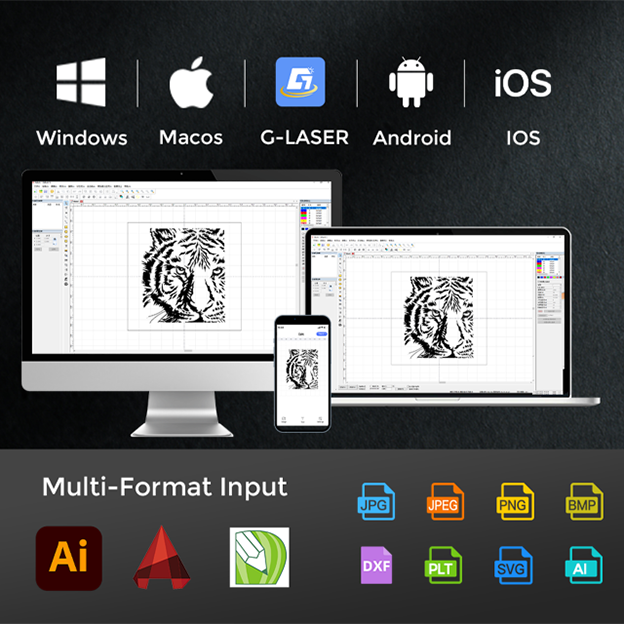

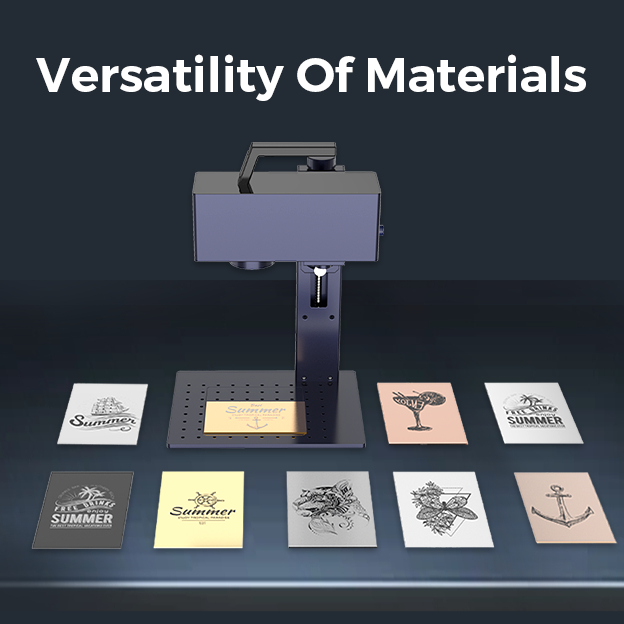

幅広い互換性

Specs Summary

Model G2
Standard Marking Field 110*110mm / 150*150mm
Laser Type 20w Raycus Ytterbium Fiber Laser Source
Laser Wavelength 1064nm
Output Power 20W
Marking Speed < 15000mm/s
Repeat Accuracy ±0.001mm
Minimum character 0.1mm
Repeat Pulse Frequency Range 30 - 60 kHz
Operation Temperature 15 - 35 ° C
Cooling Method Air Cooling
Supply Voltage 110-240 V 50-60Hz
Power Consumption < 120 W
PC Connection USB cable
Certificates CE FDA
Color Available st patrick blue
Net Weight 12Kg
Machine Dimensions 260mm(L)*440mm(W)*505mm(H)

G2レビュー

G2開封

Customer Reviews

Based on 10 reviews
80%
(8)
10%
(1)
10%
(1)
0%
(0)
0%
(0)
B
Brian Lee
Great laser for its price range

I was an early backed on Kickstarter, been using the G2 for about 3 months now. I don't really intend to travel with it, but it's small and light enough that you could, definitely lighter than most other fiber lasers in its power range.

The software (GLaser) takes some getting used to, but is very similar to EzCad, so almost any video or tutorial you find on that can translate to this.

Compared to the 2w IR laser I had before, the G2 is so much faster at marking things and can engrave deep when I want to. I've marked a variety of plastics, marked and engraved metals, and engraved slate tile. And after some testing, can even get some colors to anneal on stainless steel.

Support has been responsive, and the community on their Facebook group is helpful as well, with users posting test files, tips & tricks.

Drawbacks? Judged against other 20w fiber lasers the only drawback is lack of LB support, but that is being worked on. Judged against fiber lasers in general, could always have more power or could have a MOPA source (even more/better color annealing), but then it certainly wouldn't be in the price range it's in. Compare against Gweike's G6 series to see how much different that would be.

I'd buy it again

J
Jeff Does What
Superior fiber laser

I have had this laser for several month and it is a work horse. It is my most dependable laser i have out of the 20+ lasers in my shop. This one you cants sleep on.

Judge.me YouTube video placeholder
B
Billy G
Machine works good but.

Machine works good but the software needs work. Waiting on Lightburn. Maybe that will help.

F
Ferenc Nemeth
Great machine

! Perfect for my needs .Very helpful customer service.

A
Anton
Perfect laser engravings with the Gweike G2 laser

After careful consideration and intensive research, I recently opted for the Gweike G2 laser to carry out metal engravings. And I must say, my decision has proven to be extremely satisfactory.

The delivery of the device went smoothly and the device was carefully packaged, which immediately gave me a good feeling. It was surprisingly easy to set up thanks to the well-structured instructions. It didn't take long before I had the appliance ready for use.

However, what impressed me the most was the quality of the laser engravings. The precision and clarity with which the G2 laser works is simply impressive. I saw a video showing the engraving at maximum power and I was mesmerized by how fast and accurate the laser is. In real time, the result is just as impressive as in the video.

Of particular note is the legibility of the QR code I engraved on a piece of metal. Even with the finest details and complex patterns, the clarity is maintained.

Overall, I am extremely satisfied with my purchase of the G2 Laser from Gweike. The quality of the laser engravings, the ease of set-up and the reliable delivery make this device an excellent choice for anyone who wants to do high-precision metal engraving. I can recommend the G2 laser without reservation.
