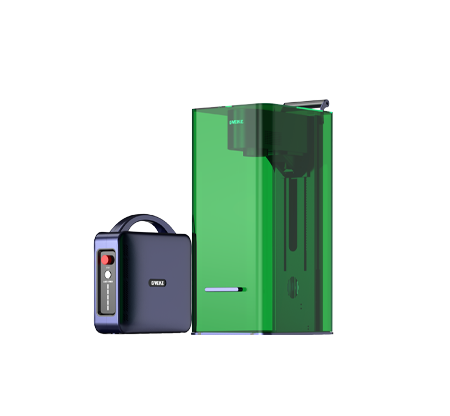

Gweike G3 Dual Laser Engraver Kickstarter Deposit
Gweike G3 Dual Laser Engraver Kickstarter Deposit
通常価格
$50.00
セール価格
$50.00
通常価格
単価
あたり
Payments:
受取状況を読み込めませんでした
Service & Benefits
1. Free & Priority Shipping
2. Local overseas warehouses: convenient locations for easy returns and repairs
3. Fully refundable deposit before final payment
4. 24/7 online support
How It Works
60W MOPA/50W/30W/ 30W MOPA/20W
Fiber Laser
40W/20W
Diode Laser
Gweike G3: The World’s 1st 60W MOPA Fiber & 40W Diode Dual Laser Engraver
Why Gweike G3 Dual Laser
MOPA | 90+ Colors
Achieve permanent, vibrant color marks (e.g., rainbow effects) on metal surfaces including stainless steel, titanium alloys, and more. 1–4000 kHz adjustable frequency range, 2–500 ns pulse width Ultra-fine pulse control, Independent peak power adjustment.
Precision Meets Versatility Across Every Material
The G3 Dual Laser Engraver excels in cutting and engraving both metals and non-metals, with the Fiber laser handling metals like steel and aluminum, and the Diode laser perfect for materials like wood, leather, and acrylic.
Brass sheet cutting
Wood cutting
Acrylic cutting
-
3D Embossed Coins
The G3 uses high-precision 1064nm
wavelength to slice 3D relief patterns into metal coins with remarkable detail.
-
Slate Deep Engraving ( Fiber Laser )
The fiber laser delivers crisp, deep engravings on slate, perfect for coasters, plaques, and art pieces.
-
Wood Deep Engraving ( Diode Laser )
The 20W Diode Laser (450nm) handles wood engraving exceptionally well, achieving deep, rich cuts on hardwoods like oak, walnut, and maple.
60W MOPA/50W/
30W MOPA/30W/20W
Fiber Laser
The fiber laser artfully engraves on stainless steel, aluminum, alloy, gold, silver, brass, plastic, leather, rubber & more.
Brass
Gold
Stainless Steel
Silver
Aluminum
Titanium
Iron
Plastic
40W/20W
Diode Laser
The diode laser engraves properly on wood, acrylic, leather, glass, rock, paper, rubber, food and so on.
Plywood
Leather
Acrylic
Paper
Coating Metal
Rock
Food
Rubber
HD Full-Color FISHEYE Camera
This user-friendly design makes your creative ideas realized effortlessly.
Visual Positioning & AI Identifying Engraving
Using a pre-established object model, a camera identifies the modeled workpiece on the workspace, aligns it accurately, and initiates the processing workflow accordingly.
Faster Engraving Speed
Batch Processing - Enhances Your Business’s Production Potential
With visual positioning and the smart camera, simply load materials onto the conveyor and have your finished batch ready in minutes.
Autofocus
Industrial-grade high-precision autofocus, Visual Ranging System, incredible precision and incomparable speed. One click makes production smoother.
3D Embossing
Superior 3D Embossing, Faster Speed At 100% power, GWEIKE G3's 60W MOPA outperforms 20W fiber lasers — delivering 3x faster speed and 200% finer details
4-In-1 Rotary Attachment
Ultimate versatility for engraving cylindrical, curved, and flat surfaces
Fully Enclosed Safety Shield with Ultra-Quiet, Efficient Ventilation
Fully enclosed design with OD5+ eye protection shield for a cleaner, safer workspace—effectively blocks dust, smoke, and laser light leakage.
The OD5+ protective shield effectively blocks laser radiation, while a built-in powerful fan efficiently extracts smoke.
Trusted by Thousands Creators Worldwide
Specifications
Processing Capacity
- Laser Power & Laser Source

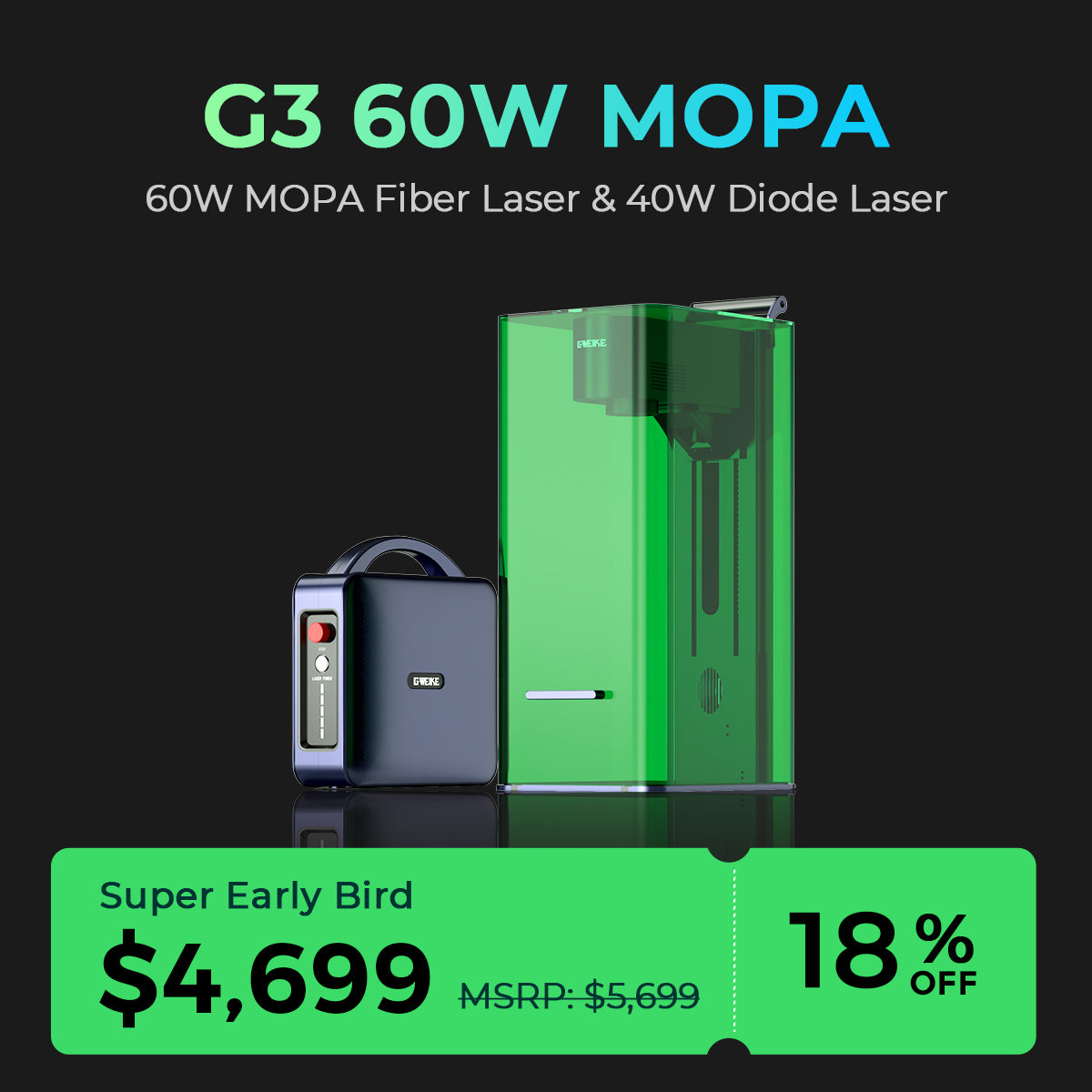

60W MOPA 1064nm Fiber laser + 40W 450nm Diode laser
30W MOPA 1064nm Fiber laser + 40W 450nm Diode laser

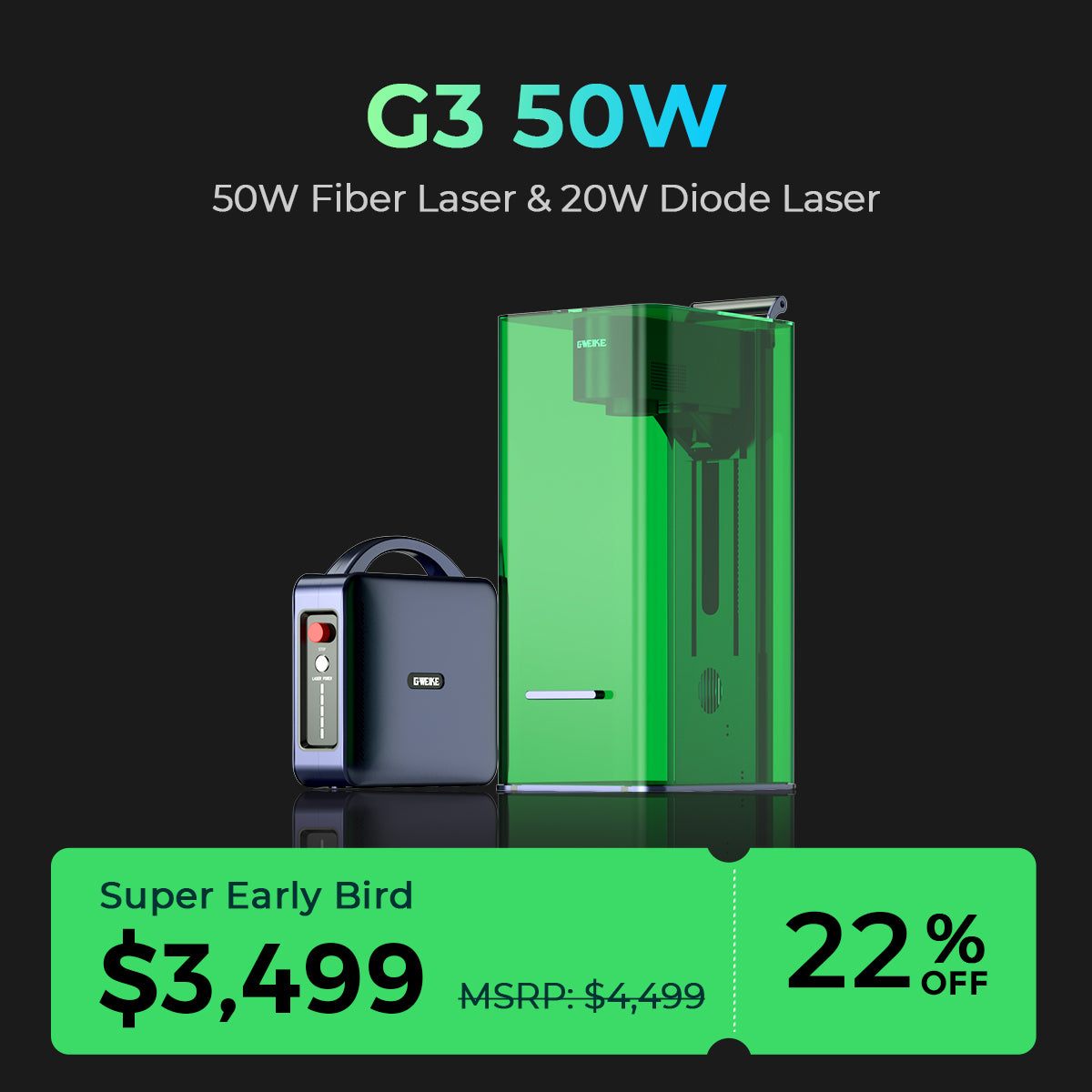

50W 1064nm Fiber laser + 20W 450nm Diode laser
30W 1064nm Fiber laser + 20W 450nm Diode laser

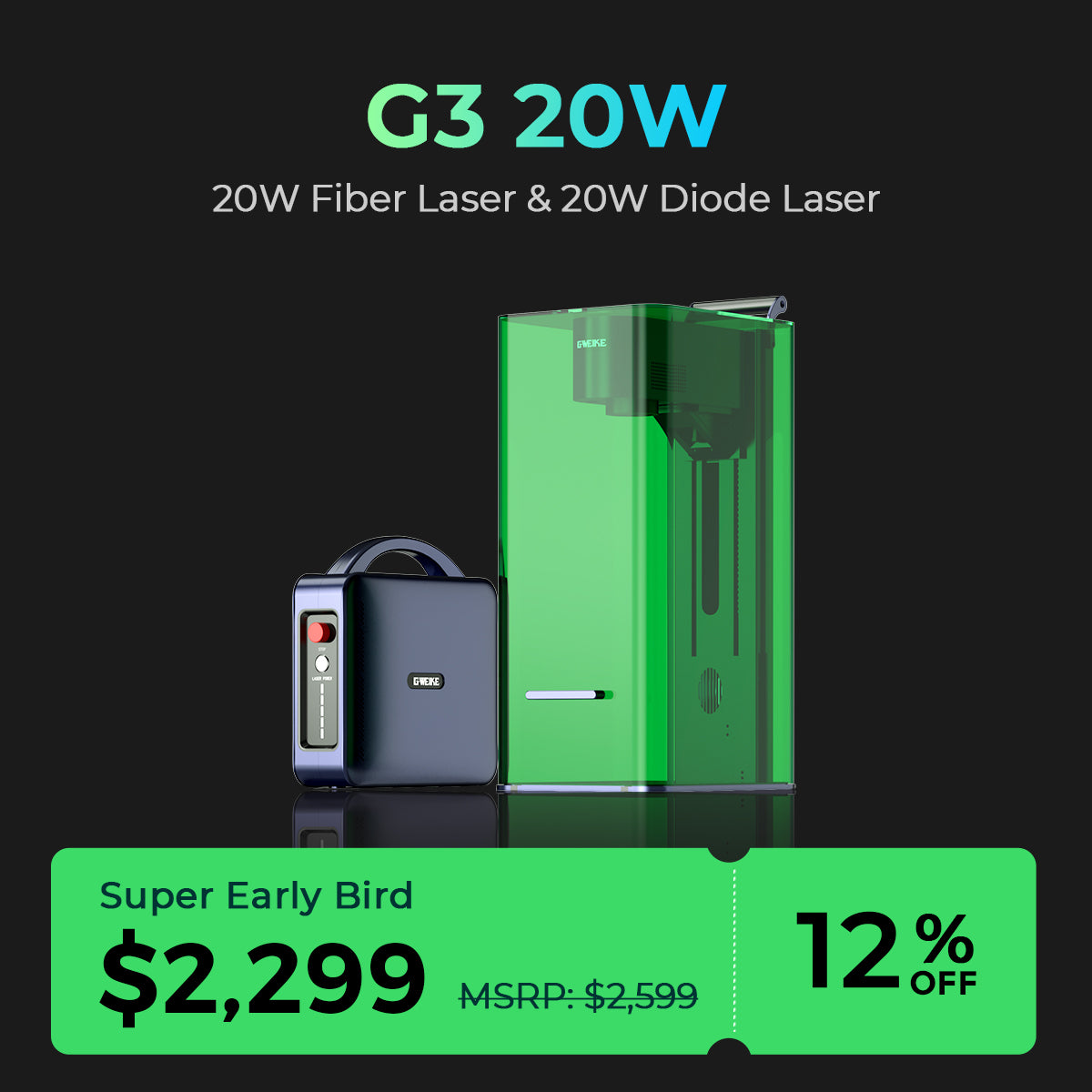

20W 1064nm Fiber laser + 20W 450nm Diode laser
- Working Area
6.9''× 6.9" (175 × 175 mm)
6.9" × 19.6" (With Conveyor) (175 × 1000 mm)
- Max. Working Speed
15000mm/s
- Processing Mode
Laser Engraving & Laser Cutting
- Supported Materials
Laser Cutting:
Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic
Fiber Laser: Brass, Stainless Steel, Aluminum
Laser Engraving:
Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass and More
Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal
Fiber Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold and More
- Max. Laser Cutting Capacity (Basswood)
20 mm in Multiple Passes
- Max. Laser Cutting Capacity (Acrylic)
12 mm in Multiple Passes
- Max. Laser Cutting Capacity (Brass)
1.5 mm in Multiple Passes
- Max. Rotary Engraving Diameter
160mm
Software
- Supported Software
GLASER/LightBurn
- Operating System
Windows/macOS/Android/iOS/iPad
- Connection Method
USB/Wifi
- Supported Files
SVG/DXF/JPG/JPEG/PNG/BMP/TIF
Operation
- Built-in Camera
16 MP Smart Camera
- Focus Mode
Autofocus
- Positioning Method
Camera Positioning
- Batch Processing
Smart Filling of the Same Shape
Accuracy & Precision
- Laser Spot Size
0.08 x 0.1 mm(Diode Laser)/0.06 x 0.06 mm(Fiber Laser)
- Engraving Precision
0.0027 mm
- Focus Precision
0.5 mm
General Information
- Product Dimensions
20.69'' x 8.66'' x 13''(525.5*220*330mm)(without Laser Box)
- Weight
12.2kg
- Supply Voltage
110-240 V 50-60Hz
- Max Input Power
20w : 290w
30w : 360w
50w : 410w
MOPA 30w : 505w
MOPA 60w : 570w
- Cooling Method
Air Cooling
FAQ
If you need to request a deposit refund, please contact us via email(info@gweikecloud.com). We will confirm your information and complete the refund process within 7 business days.
You can change the model at any time before the order is officially shipped. Please contact us via email(info@gweikecloud.com), and we will confirm the details with you.
After the campaign launches, we'll send the Secret Rewards link to the email associated with your deposit. Simply complete your pledge through the Kickstarter link.
Please contact us via Email (info@gweikecloud.com) as soon as possible. We’ll manually match your information to ensure your Rewards are not affected.
