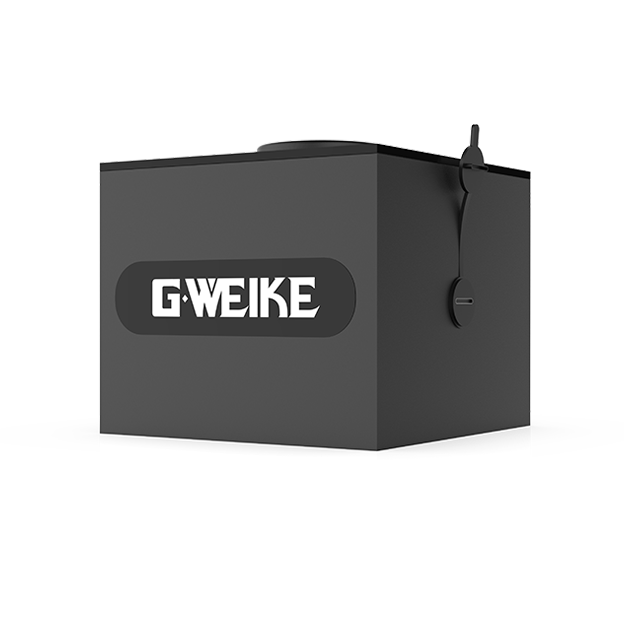

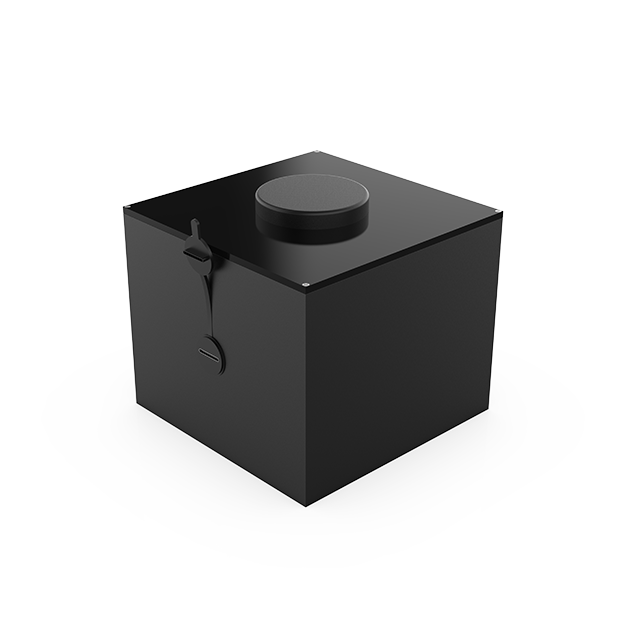

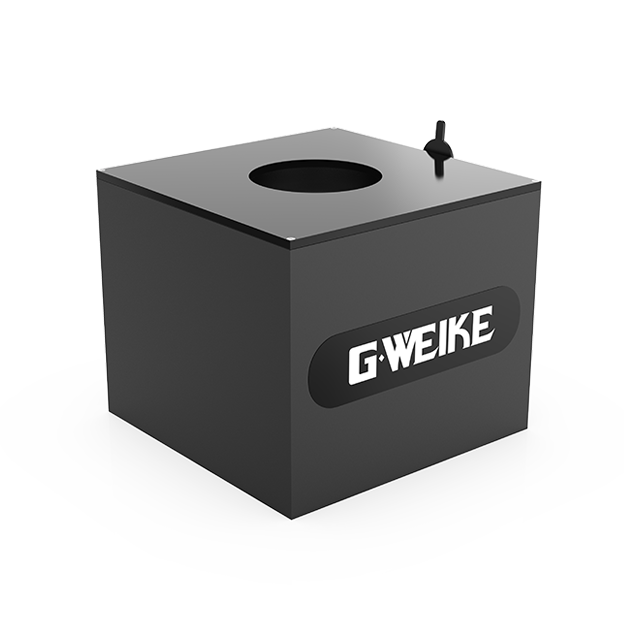

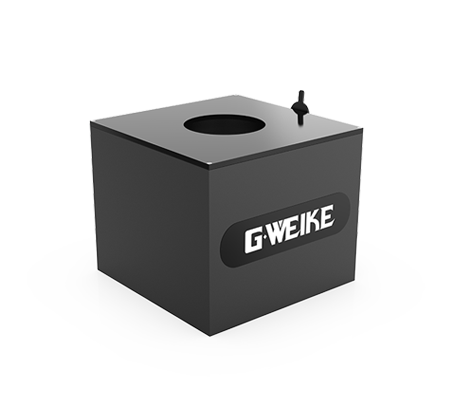

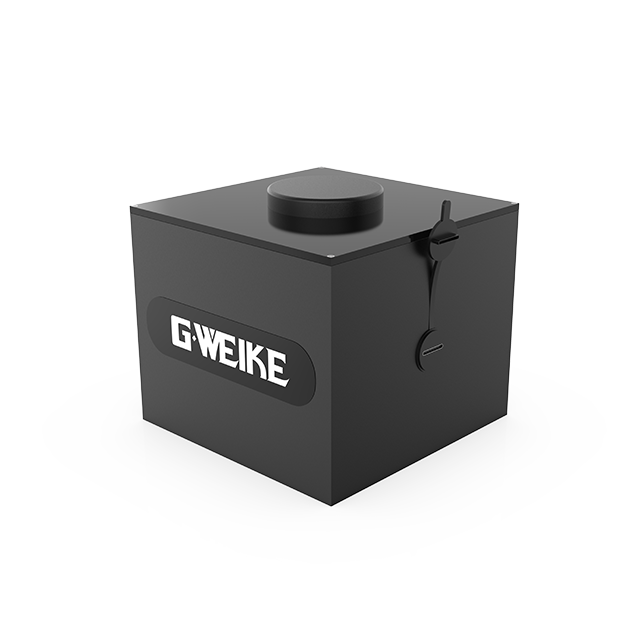

Visual Alignment System for M Series
Visual Alignment System for M Series
受取状況を読み込めませんでした
What is a Visual Alignment System?
A Visual Alignment System is a precision calibration system based on machine vision technology. It integrates industrial cameras and vision algorithms to display the otherwise invisible or difficult-to-observe tool centers in real-time on the operation screen, enabling fast and high-precision alignment of key equipment components.

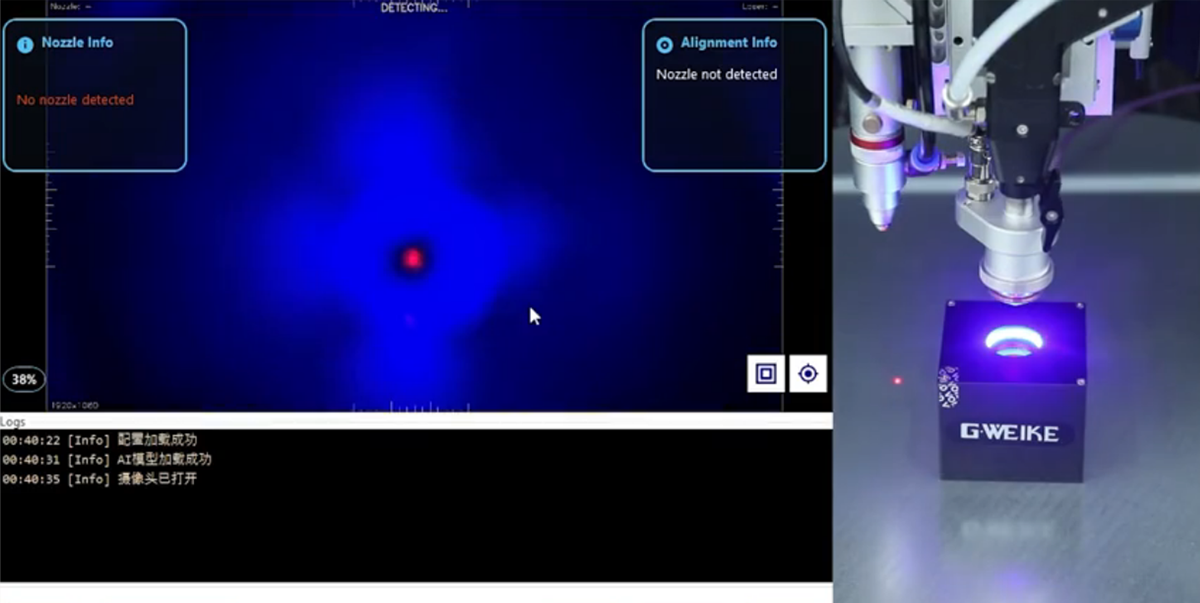

The system calculates and displays the deviation value (in mm) between the nozzle center and the laser center in real time. This provides operators with a clear reference for adjustments, facilitating precise calibration.
Visual Alignment with Minimal Operation

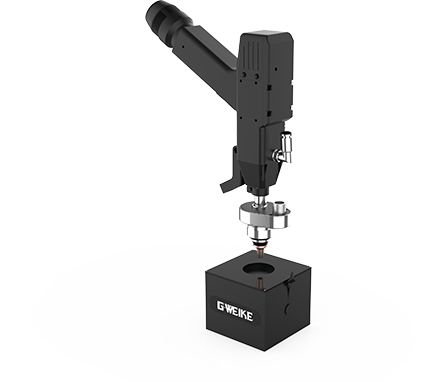

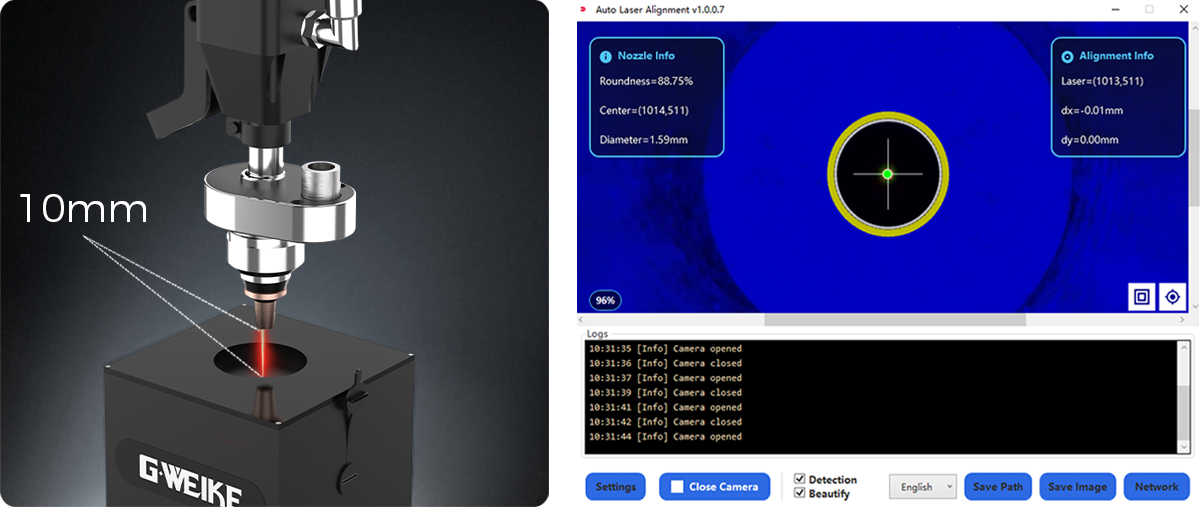

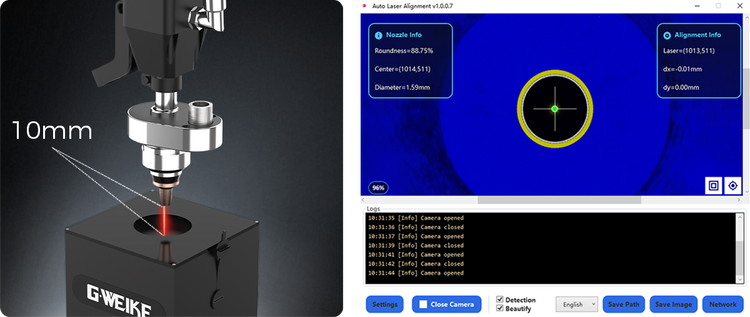

Place the module approximately 10 mm below the nozzle and start alignment with one click by turning on the camera. No need for repeated test plate cutting or enlarged slit observation, significantly reducing debugging cycle.
0.01mm Visual Data with 0.01mm Precision
The system automatically calculates and displays the coordinates of the nozzle center, laser center, and precise deviation value. It converts "coaxiality" into quantifiable numbers, enabling accurate adjustments below the millimeter level.

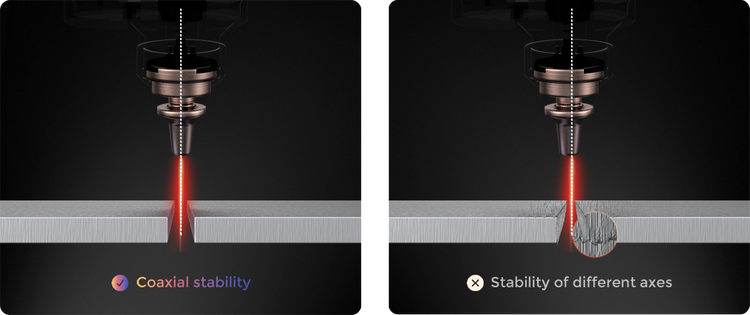

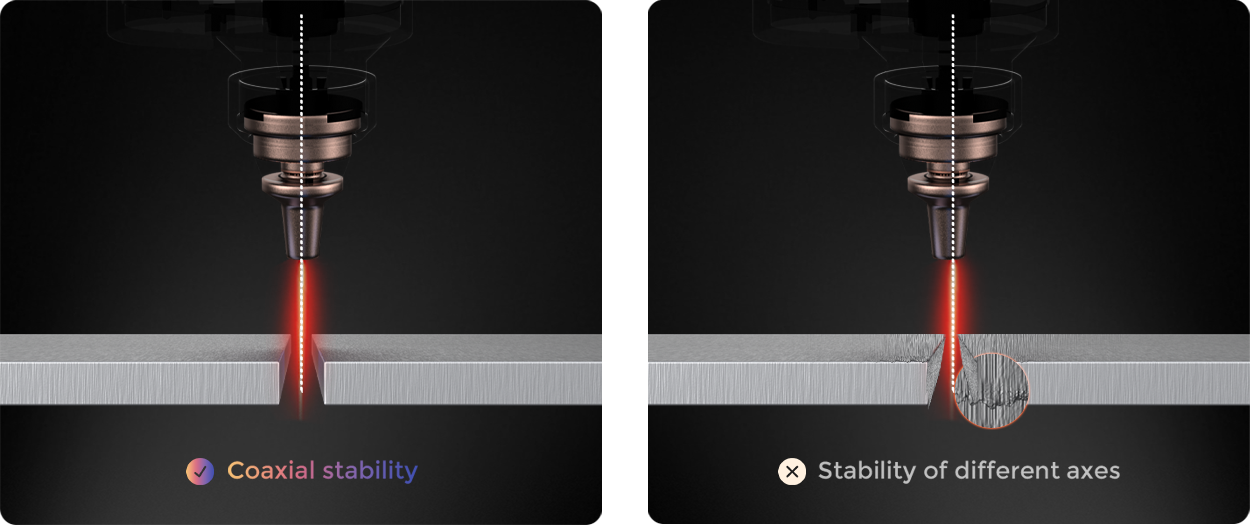

Reduce Dross, Burrs and Rework
When the coaxiality between the laser and nozzle is stable, airflow and energy concentrate on the slit centerline. This effectively reduces dross and offset cutting, improves cutting section quality, and lowers scrap rate.
Specifications
- Item
Specification Description
- Alignment Accuracy
Visual adjustment, supporting 0.01 mm-level center deviation control
- Recommended Installation Position
Module placed approximately 10 mm below the nozzle
- Connection Method
Connected to the computer via USB to Type-C data cable (USB 3.0 port recommended)
- Software Interface
Supports RGB Camera selection; provides display of nozzle center, laser center coordinates and deviation
- Viewing Terminal
PC-side software interface; real-time viewing via mobile browser or QR code scanning
- Adaptable Equipment
Cutting heads of various brand fiber laser cutting machines, including bus intelligent cutting heads, etc.
